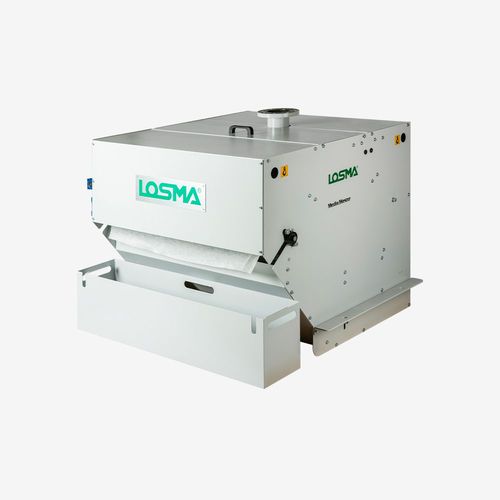

Gravity filtration system Medio Master

for liquidshigh-efficiency

Medio Master is a high industrial liquid purifier, available in three models, capable of filtering 200 to 400 l/min of neat oil and 400 to 800 l/min of water-based emulsion, polluted by metal and non-metal particles. Medio Master allows excellent filtration of coolants and lubricants according to different requirements, thanks to the use of a disposable filter medium. It is suitable for many industrial processes such as drawing, grinding, rolling, washing, polishing, etc. LOSMA guarantees that each purifier is individually tested through rigorous control procedures. A quality and functional test certificate is issued for each unit. All Master series models are equipped with a corrugated metal chain which, thanks to the side sealing discs, guarantees a perfect seal of the dirty liquid in the filter section. The filters in this series use a disposable filter medium, which allows the degree of filtration to be varied by changing only the type of filter, always achieving excellent results. Compared to flatbed filters with the same flow rate, the Master range has a considerably smaller footprint and achieves a better degrees of filtration. Operation In the initial phase the fabric, stretched inside the filter, is completely clean. The dirty liquid entering must pass through it into the lower tank, where it deposits the pollutants on its surface. The clean liquid then passes into the lower part where it finds the drain opening and falls into the collection tank. During this phase, the system is stationary and the belt does not advance. The pollutant material that settles there forms the actual filter layer, which in many applications can be up to 10 mm thick.
