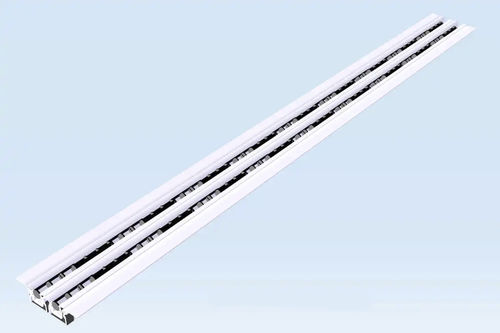

ceiling-mounted air diffuser / induction / slot
LDB 12 clean

Add to MyDirectIndustry favorites
Compare this product
ceiling-mounted air diffuser / induction / slot ceiling-mounted air diffuser / induction / slot - LDB 12 clean
{{requestButtons}}

Characteristics

  • Mounting:

    ceiling-mounted

  • Other characteristics:

    induction, slot

  • Air flow:

    70 m³/h, 130 m³/h, 190 m³/h, 250 m³/h (2,472.03 ft³/h)

Description

Adjustable linear air diffuser for constant or variable flow rates.
Adjustable to ranges of 100 … 20 % of the nominal volume flow rate without the need for any additional mechanical devices.
Direction of diffusion adjustable by 180°, factory-set. Setting may be reproduced at any time.
Subsequent adjustment possible even after installation, adjustment with close-to-zero opening possible.
Cylindrical diffuser elements with high induction ratio, optimized contour, rapid reduction of expelled air speed and temperature difference.

Ø diffuser elements 12 mm
For high comfort
Flow pattern from flat ceiling jet to broad jet comprising of 18 individual micro-jets per meter and slot row
LTG System clean: additional slot in the diffuser border profile to reduce contamination around the diffuser
