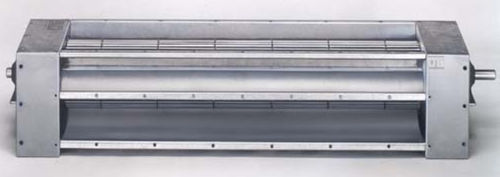

High-performance fan VQ series

tangentialcoolingdrying

The tangential fans in the VQ series are fans in a robust industrial design with increased corrosion protection. They are designed with a free shaft end and feather key and are designed for a V-belt drive. The corrosion-resistant housing is made of either galvanized steel or stainless steel in a sturdy design. The impeller is made of galvanized steel. The tangential fans in the VQ series are available in three versions: • VQP…S/D (VQN) up to 120 °C fluid temperature • VQP…F/G (VQH) up to 300 °C fluid temperature • VQP…H (VQT) up to 500 °C fluid temperature Versions up to 800 °C can be customized and have already been used in various applications, z. realized in the glass industry, for example. The VQE slide-in unit completes the range. The overhung impeller on a motor shaft significantly reduces the effort required for design, installation, operation and maintenance. • VQE… Slide-in unit with motor
