Butterfly valve KLB
pilot-operatedshut-offfor air

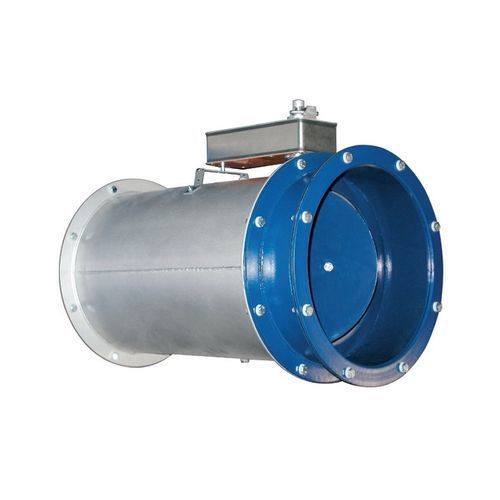

Butterfly valve - KLB - LTG Aktiengesellschaft - pilot-operated / shut-off / for air

Butterfly valve - KLB - LTG Aktiengesellschaft - pilot-operated / shut-off / for air - image - 2

Add to favorites

Compare this product

Characteristics

Type

butterfly

Operation

pilot-operated

Function

shut-off

Media

for air

Applications

laboratory

Material

stainless steel, galvanised steel

DN

Max.: 800 mm
(31.496 in)

Min.: 224 mm
(8.819 in)

Pressure

1.5 bar, 1.7 bar
(21.8 psi, 24.7 psi)

Description

The KLB high-tight shut-off damper safely and airtightly shuts off volume flows in round air ducts. The air leakage rate is so low that it can hardly be detected even by a laboratory measurement. The requirements of DIN 1946 Part 4 for airtight dampers (damper leakage class 4 to DIN EN 1751) and casing leakage class C to DIN EN 1751 are met with a high degree of certainty. • Meets the highest hygiene standards, as required in clean rooms and hospitals, for example • Maximum performance: becomes denser with increasing pressure (KLB) • Corrosion-resistant due to galvanized steel or stainless steel design
