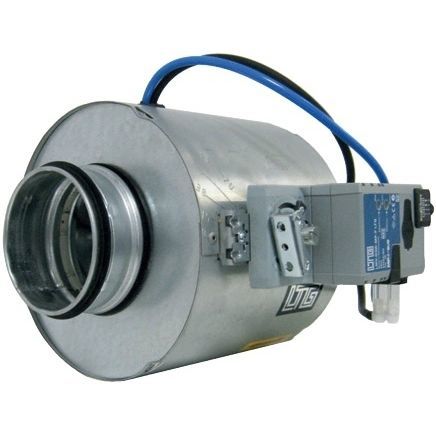

Differential pressure flow controller VRE active
for airprecisionstainless steel

Add to favorites

Compare this product

Go to the LTG Aktiengesellschaft website for more information

Characteristics

Technology

differential pressure

Fluid

for air

Other characteristics

precision, stainless steel

Flow rate

Max.: 1,000 m³/h
(35,314.66672 ft³/h)

Min.: 27 m³/h
(953.496 ft³/h)

Pressure

Max.: 1,000 Pa
(0 psi)

Min.: 0 Pa
(0 psi)

Nominal diameter

Max.: 400 mm
(15.748 in)

Min.: 100 mm
(3.937 in)

Description

Variable Flow Rate Controllers of VRactive series are designed for supply pressure-independent control of constant or variable air flows. Advantages - Optimum use of your plant´s energy-saving potential - Highest precision of all known measuring systems due to LTG map control - Manages even lowest air speeds due to enhanced differential pressure - One system for round and rectangular ducts, available with dynamic or static measuring principle - Easy integration due to entryflow-insensitivity and very short installation length -Optimised design with particularly airtight closure
