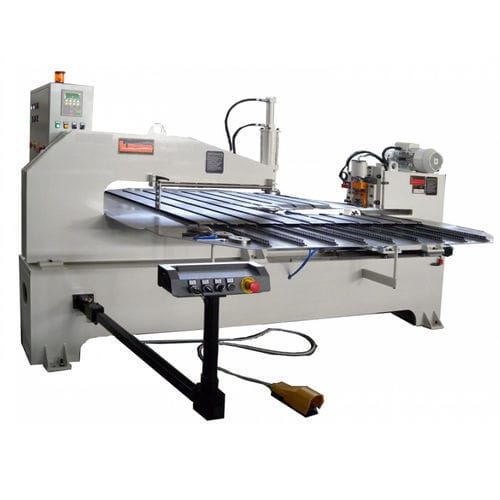

Circular shear 5/1800 TM
pneumaticsheet metalautomatic

circular shear
circular shear
circular shear
Add to favorites
Compare this product


Characteristics

Operation
pneumatic
Application
sheet metal
Type
circular
Other characteristics
automatic
Plate thickness

Min.: 0 mm
(0 in)

Max.: 5 mm
(0.2 in)

Description

This circular shears is designed to clamp the centering point of the piece to be cut so as to facilitate the interaction with an automatic/robot transfer. Unlike the traditional 5/1800 the cutting head is movable, assembled on ball rail systems driven by brushless motor (to set the diameter through keyboard with tolerance ± 0,02 mm). The machines can be supplied with circular centering plates (diameter 90 ÷ 500 mm) with quick set-up and bearing plate with vertical pneumatic movement to facilitate the piece extraction and cutting operation. Min Ø (mm) - 150 Max Ø (mm) - 1800 Max. beading height (mm) - Cutting speed (mt / min) - 35
