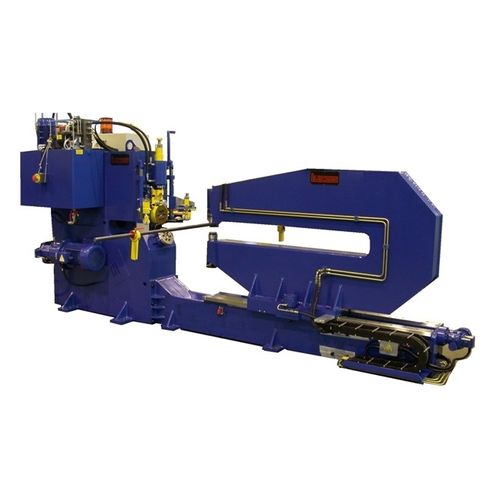

Circular shear 2600
hydraulicsheet metalmotorized

circular shear
circular shear
circular shear
Add to favorites
Compare this product


Characteristics

Operation
hydraulic
Application
sheet metal
Type
circular
Other characteristics
motorized, semi-automatic
Plate thickness

6 mm, 8 mm, 10 mm
(0.2 in, 0.3 in, 0.4 in)

Pressing force

400 N

Description

This type of machines has always represented one of the strong points of the company production. Our machines perform cutting and beading (on demand) with a high quality of finish and absolute repeatability of the pieces. The... / 2600 versions stands out for clamping through hydraulic tailstock even with considerable thickness. digital displaying of cutting diameter high productivity thanks to the high cutting speed blade descent with hydraulic control with slowdown device for gentle cutting in more revolutions Machine available in three models 6/2600, 8/2600 and 10/2600, depending on the maximum thickness to work. It can be supplied also with recirculating ball screws and d/c motor for the quote positioning with storage of programs and quick repositioning (6 m / min). Optionally with central punching device and special tailstock for working cones. Min Ø (mm) - 280 Max Ø (mm) - 2600 (or 1800) Max. beading height (mm) - 45 Cutting speed (mt / min) - 10 ÷ 50

Catalogs

No catalogs are available for this product.

See all of Lucas‘s catalogs
