Beer keg handle forming machine M.S.M.

beer keg handle forming machine
beer keg handle forming machine
beer keg handle forming machine
beer keg handle forming machine
beer keg handle forming machine
beer keg handle forming machine
Add to favorites
Compare this product


Product handled
for beer keg handles
Treated material
Operating mode
Other characteristics
hydraulic, multi-station, cutting

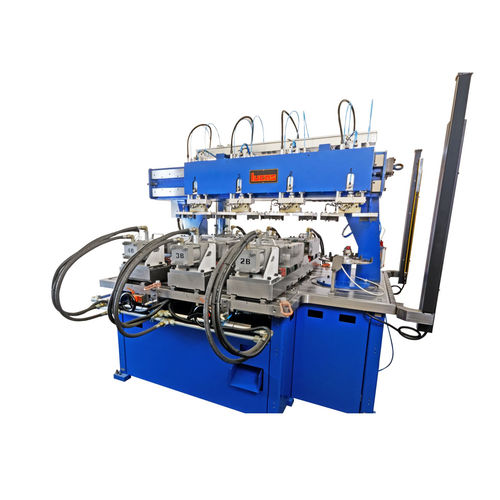

Four stations machine equipped for forming handles on beer kegs (equipped for one Ø only); The ring is deposited on the centering station where it is oriented in the correct position for following operations. A transfer device moves, after a single operation, the workpiece in the three work stations (cutting, pre-forming and curling). After the last station the fourth arm of the piece transfer device deposits the part on a conveyor belt of the customer. Composed by three stations mechanically identical, but equipped to perform different operations (cutting, pre-forming, curling). Each station is composed by a central matrix holder where the part is positioned. The hydraulic punches are positioned in two opposite slides. The hydraulic movement of the slides allows working both diameters of the parts; Longitudinal step transfer on a frame composed by a trolley with no. 4 pneumatic cylinders for the vertical movement for holding the parts; Holding system is used also as a tailstock; Pneumatic clamping system complete with sensors for monitoring piece holding. Hydraulic components REXROTH. Maximum working thickness (R = 800 N / mm2 ) mm. 2 Standard power supply 50Hz - 400V - 3Ph
