Digital multimeter MS8221Apocket1000 Vcat III
Add to favorites
Compare this product
Characteristics
- Display
- digital
- Form
- Max voltage
- 1000 V
- Safety rating
- cat III
- Additional features
- frequency
- Applications
- for training
- Other characteristics
- AC/DC
- Max DC voltage
0.2 V, 2 V, 20 V, 200 V, 600 V
- Max AC voltage
2 V, 20 V, 200 V, 600 V
- Max DC current
0.2 mA, 2 mA, 20 mA, 200 mA, 10,000 mA
- Max AC current
2 mA, 20 mA, 200 mA, 10,000 mA
- Max resistance measure
2 kOhm, 20 kOhm, 200 kOhm
- Max DC voltage resolution
0.1 mV, 1 mV, 10 mV, 100 mV, 1,000 mV
- Max AC voltage resolution
1 mV, 10 mV, 1,000 mV
- Max DC current resolution
0 mA, 0.01 mA, 0.1 mA, 1 mA, 10 mA
- Max AC current resolution
0 mA, 0.01 mA, 0.1 mA, 10 mA
- Max resistance resolution
1 Ohm, 10 Ohm, 100 Ohm
- DC voltage precision
0.5 %, 0.8 %
- AC voltage precision
0.8 %, 1.2 %
- DC current precision
0.8 %, 1.2 %, 2 %
- AC current precision
1.2 %, 2 %, 3 %
- Resistance precision
0.8 %, 1 %
- Process temperature
Max.: 1,000 °C
(1,832 °F)Min.: -20 °C
(-4 °F)
Description

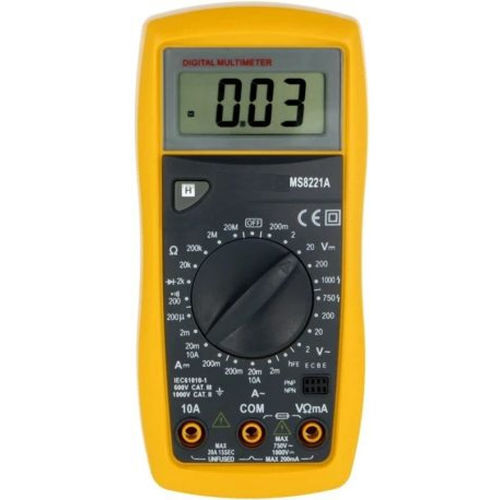

The MS8221A is a portable, pocket size professional measuring instrument equipped with a large, easy-to-read LCD display.
The meter has been designed to measure AC / DC voltage and current, resistance, capacitance and frequency, the meter is ideal for use in the field, in the workshop, as a training and educational tool and in home applications.
Main features
-AC / DC current measurement max 10A
-DC 1000VDC voltage measurement;
-750VAC AC voltage measurement
-resistance measurement
-continuity test
-hold function
