Digital multimeter VA503pen typefrequency
Add to favorites
Compare this product
Characteristics
- Display
- digital
- Form
- pen type
- Additional features
- frequency
- Max DC voltage
50 V
- Max AC voltage
36 V
- Max DC current
1 mA
- Max AC current
1 mA
- Max resistance measure
4 kOhm, 40 kOhm, 400 kOhm
- Max capacity measure
4 µF, 40 µF, 200 µF
- Resistance precision
1.2 %, 2 %
- Process temperature
Min.: -10 °C
(14 °F)Max.: 60 °C
(140 °F)- Length
181 mm
(7.13 in)- Width
35 mm
(1.38 in)- Height
20 mm
(0.79 in)
Description

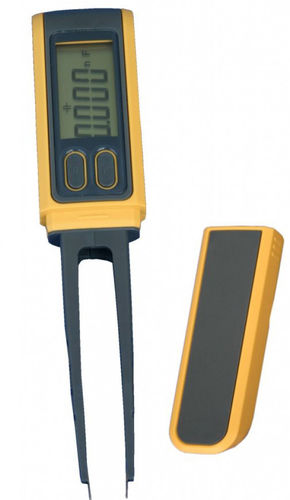

The R / C VA503 pen meter has been designed for simple and convenient measurement of elements made in SMD and standard technology.
The small, compact size of the meter and the readable LCD display allow the meter to be operated with only one hand.
Main features
-measurement of resistance 400..40M Ohm
-capacity measurement 4nF..100uF
-diode test
-measurement of relative values
