OEM camera Lt-C/M1610B

industrialfor scientific applicationsagriculture

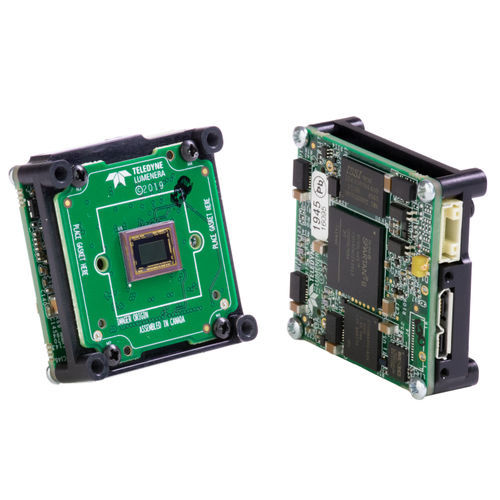

Low Light Challenges with Small Solutions Using the Teledyne Lumenera Lt-C/M1610B USB3 board level camera allows engineers to use Sony® Pregius™ Gen3 sensor technology in a reliable and slim form factor. With high frame rates up to 96 fps, a dynamic range of 73 dB, and a full well capacity up to 100Ke, the Lt-C/M1610B is an excellent choice for low light environments. By utilizing the 9 µm pixel size, a significant amount of light can be captured in applications such as intelligent traffic systems that require a fast imaging solution that can reliably capture a clear image in varying lighting conditions. TELEDYNE LUMENERA LT-C/M1610B BOARD LEVEL CAMERA HIGHLIGHTS •Color or monochrome Sony Pregius IMX432 global shutter CMOS sensor with 1.1” optical format •1.7 megapixel camera with fast frame rates of 96 fps at full resolution (1608 x 1104) •High-Speed USB 3.1 Gen 1 interface for fast image delivery and simplified connectivity •Compact form factor measuring 40 mm x 40 mm x 17 mm •Locking industrial micro USB on the side for power and control •High Conversion Gain (HCG) allows camera to capture clearer images in low-light •environments with reduced read-noise •Region of Interest (ROI) option to provide higher frame rates •Selectable 8 or 12-bit pixel data •Multiple data rates supported, each optimized for lowest noise performance SOFTWARE PLATFORM OPTIONS •USB3 Vision compliant SDK •Teledyne Lumenera Camera SDK (Windows and LINUX) KEY APPLICATIONS •Aerial imaging •Precision agriculture •Portable / OEM Devices •Outdoor imaging •Intelligent Traffic Systems (ITS) •Life sciences •Industrial inspection solutions
