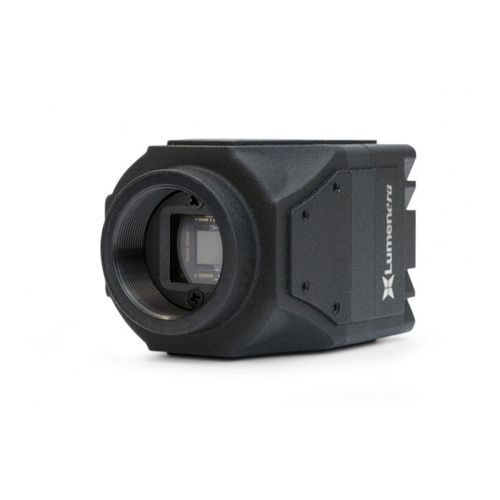

Digital camera Lt965R

machine visionfor scientific applicationsfor traffic monitoring

The ICX814 sensor-based Lt965R reliably delivers full resolution frames at the maximum achievable speed of 19 fps. This USB 3.1 Gen 1 camera is ideal for applications where high resolution, and sensitivity are critical such as high-resolution surveillance, traffic, tolling, ophthalmology, life sciences, high-speed inspection, machine vision and NIR applications. A scientific-grade variant is available for the most demanding life science applications. The Lt965R can also be customized to suit OEM designs. LUMENERA LT965R CAMERA PRODUCT HIGHLIGHTS •USB 3.1 Gen 1 camera using the 9.1 MP Sony ICX814 ExView HAD II Quad Tap sensor technology •19 fps at full resolution (3376 × 2704) •9.1 megapixel color and mono solutions •High resolution, low noise CCD imaging •Global shutter with progressive scan for low smear •Impressive color reproduction •Compact design for integration •Zero loss 128 MB RAM frame buffer for reliable image delivery in demanding situations •Selectable tap read out to match sensor performance to your application •Industrial and scientific models HIGH QUALITY IMAGES AT HIGH SPEED The Lt965R is built with leading edge Sony EXview HAD II technology. The ICX814 sensor provides unparalleled results when it comes to delivering a critical combination of features that include high quality, high sensitivity and low noise even into the NIR range. Lumenera is one of a limited number of camera suppliers to provide the highest possible frame rate that can be achieved with the ICX814 sensor.
