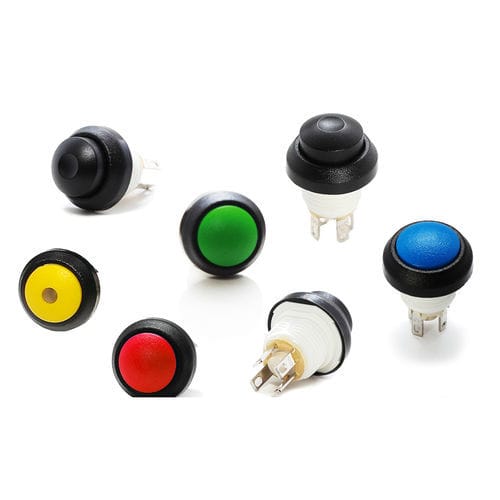

Touch push-button switch WSA48 series

waterproofIP67metal

ITW Lumex Switch, WSA48 series is a pushbutton switch in 12mm, Plastic or metal housing/bezel, lighting indication pushbutton. Support with SPST, Normal open and Normal close, Terminal and wireleads harness options. The panel mounting can reach to IP67 water proof, wireleads harness even offer bottom sealing to offer high pull out force and harsh environment application. Key Features: Size: 12mm 5A@28VDC Solder/PC Terminal & wire leads Operation Temperature: -40 to 85℃ SPDT: 1 NO / 1 NC UL61580 Certify Temperature range - -40 to 85℃ -25 to 85℃ -25 to 65℃ Button - Plastic button Color: Black, Red, Green, Blue, Yellow, White Bezel - Plastic bezel: Black color with round shape > waterproof Silicon CAP is optional for application Connection - Terminals and wire leads > Through-hole terminal > Solder terminal > wire leads Indication - Lighting indication. Dot and standby power logo indication is optional LED Color: Green, Blue, Red, White, Yellow … Application: Office equipment Medical equipment Industrial machinery Mass transportation Food processing equipment Outdoor Controls Joystick Controls
