Flashlamp-pumped laser DRL Seriespulsedsolid-stateinfrared
Add to favorites
Compare this product
Characteristics
- Operational mode
- pulsed
- Technology
- solid-state
- Spectrum
- infrared, green
- Applications
- for spectroscopy, illumination and ablation
- Other characteristics
- compact, high-repetition rate, air-cooled, water-cooled, multimode, Nd:YAG, flashlamp-pumped
- Wavelength
355 nm, 532 nm, 1,064 nm
Description

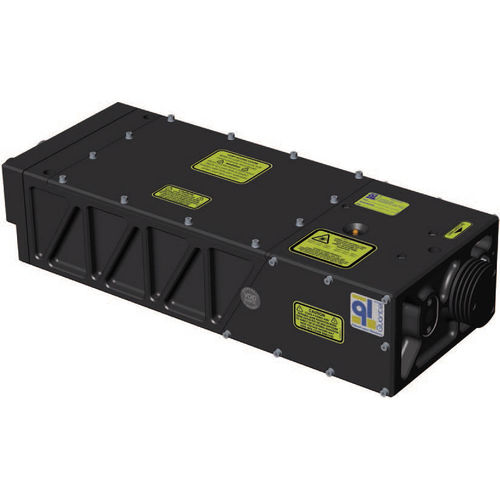

The DRL laser is a lamp pumped Nd:YAG laser based on
2 YAG rods pumped by 1 flash lamp each. This design enables a broad range of pulse energy and repetition rate combinations. Two versions of power supplies are used to cover the whole range of repetition rates. The DRL covers
20 – 200 Hz with pulse energies of 700 – 100 mJ at 1064 nm. The laser head is compact for easy integration and sealed to operate in various environments.
- 1064, 532 and 355 nm available
- Quick umbilical disconnects
- Compact
- Multimode resonators
- 100 million shots lamp lifetime guaranteed
- Sealed laser head to operate in various environments
