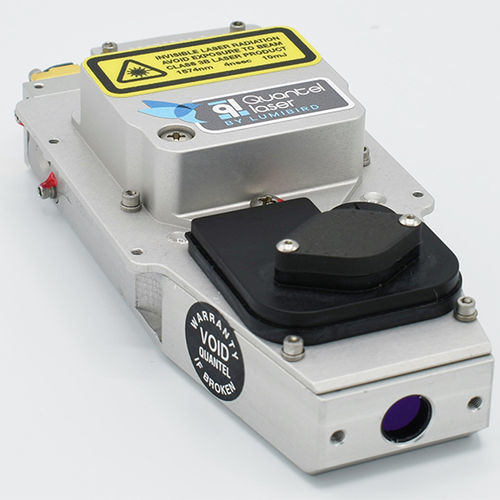

Pulsed laser Falcon 157

solid-statecompactrugged

NEW: The Falcon laser series was built for rugged applications and unpredictable environments where temperature and vibration would destroy most commercial lasers. A proprietary design, the Falcon provides eye-safe wavelengths in a compact yet robust package. Designed for battery operation in hand-held and mobile applications, this DPSS Nd:YAG laser features maintenance free operation for years of hard use. • Highly ruggedized diode-pumped solid-state laser (up to 60 g shock) • Ultra compact & portable with battery operation • «Eye safe» wavelength • Sealed for operation in harsh environments • Proven drop-resistance up to 1 meter • Customized electronics integration upon reques • Beam quality optimized for focusability Falcon 157 : Collimated : Focused Wavelength (µm) : 1.57 Repetition rate (Hz) : Up to 40 Energy per pulse (mJ) : 4.5 Pulse duration (ns) (1) : < 6 Beam diameter : 1.2 ± 0.5 (2) < 0.14 (3) Beam divergence (mrad) (4) < 8 : N/A M2, focusability (times diffraction limit) : N/A : < 5 Pulse to pulse energy stability (% RMS) : < 2.5 Operation mode : Burst / Continuous
