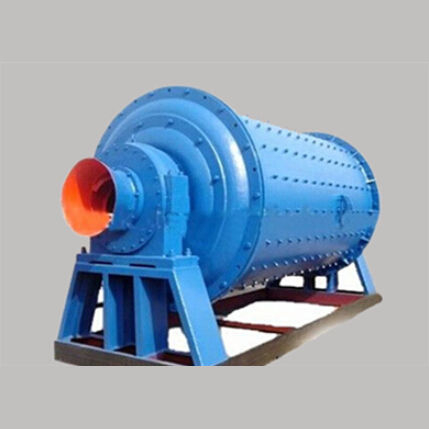

Mill with rods MBS (G) series
horizontalgrainbuilding materials

mill with rods
mill with rods
mill with rods
mill with rods
Add to favorites
Compare this product


Characteristics

Technology
with rods
Orientation
horizontal
Product applications
grain, building materials
Output

Max.: 8 t/h
(5 lb/s)

Min.: 1 t/h
(1 lb/s)

Motor power

22 kW, 630 kW
(29.91 hp, 856.56 hp)

Machine length

Max.: 14,600 mm
(575 in)

Min.: 4,980 mm
(196 in)

Machine width

Max.: 8,800 mm
(346 in)

Min.: 800 mm
(31 in)

Machine height

Max.: 6,800 mm
(268 in)

Min.: 2,020 mm
(80 in)

Machine weight

Max.: 160 kg
(353 lb)

Min.: 6 kg
(13 lb)

Description

The rod mill has both dry and wet process available for customer choice. The mill will be equipped with magnetic iron remover when it’s used in grinding of the quartz sand, dolomite and monazite etc. It’s widely applied in various ore and rock processing in metal mines, hydro-power and building materials and so on. 1.The power can be saved more than 40% compared with old type. The product size is uniform with a little coarse particles and mud. The over-rushing is light. 2.The discharge granularity is more uniform with higher production which is suitable for ores of different hardness (Moh’s hardness 5.5~12) 1. The rod mill is named as it has the steel rod as grinding medium. Normally it adopts the wet overflow process as an open circuit grinding at first stage. It’s widely used in the first grinding of artificial sand making, mineral processing plant and power sector of chemical plant, etc. 2. The product grain characteristics of the rod mill is relative with the grinding process. When the rod impact the materials, the coarse ones are impacted first, then the fines to reduce thus the over-crushed risk. When the rod move up along the lining, they have the coarse grains between them as rod screen, which allows the fine ones passing through the rod gap, facilitating thereby the crushing of coarse grains or concentrate the coarse grains in the area where the rods can break easily. Therefore the product of the rod mill is uniform with lighter over-crushing.
