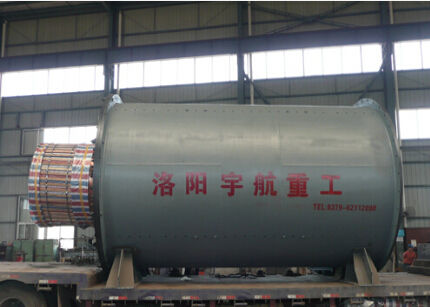

Ball mill
horizontalfor ceramicsglass

ball mill
ball mill
ball mill
ball mill
Add to favorites
Compare this product


Characteristics

Technology
ball
Orientation
horizontal
Product application
glass, for metals, for ceramics
Other characteristics
wet grinding
Output

Max.: 90 t/h (55 lb/s)

Min.: 1 t/h (1 lb/s)

Motor power

19 kW (26 hp)

Machine weight

Max.: 65 t (72 us ton)

Min.: 4 t (4 us ton)

Description

The ball mill is key equipment for regrinding the materials after crushed. It’s widely used in many industries such as cement, silicate products, new type construction materials, refractories, fertilizer, ferrous & non-ferrous metal processing as well as glass ceramics etc. Suitable materials : Dry & wet grinding of various ores and grindable materials. Sales hot line :0379-62112728 1.The mill is composed essentially by feeding, discharge, rotary and transmission parts (reducer, pinion, motor and electrical control unit). Other main components are: trunnion made by casting; inner lining being replaceaple, girth gear finished by casting and gear-hobbing machining and the wear-resistant liners applicable. 2.Steady running and convenient operation is available. The mill whose diameter is 1500~2100mm adopts the spherical tile main bearing, while the diameter over 2700mm uses the fully enclosed self aligning 120 degree "rocker" type bearing, which has the babbit bush (High lead low tin &low hardness) and cooling pipes in the bearing housing. The bearoning hydrostatic structure is oiled by high & low complex lubricating station. 3. The dry type and wet grate type mill can be selected according to the nature of materials and discharging mode. The ball mill manufactured by our company has three (3) types: wet grate, dry grate and overflow. The mill is horizontal drum rotating device. It has features of the girth gear rotating at circumference, two chambers and grate discharging.
