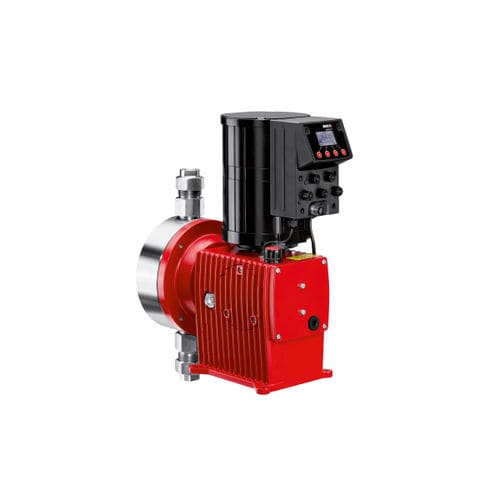

Plunger pump MEMDOS LP

for alkalisacidfor chemicals

Product information
The MEMDOS LP is a dosing pump intended for integration into control systems and regulation loops. An Ethernet-based MODBUS interface is available for connection to advanced automation networks. With a robust tappet (plunger) drive and manual or automatic capacity adjustment, the unit reliably doses a wide range of media such as acids, alkalis, precipitants and flocculants. A double diaphragm system is available on request.

Features & advantages

• Capacity range 4 - 1020 l/h, up to 16 bar
• Power supply 230 V ± 5%, 50/60 Hz
• Material versions: PVC, PP, PVDF and stainless steel
• Stroke frequency adjustable with high precision via keypad
• Graphic display with multilingual menu
• Analogue input 0/4 - 20 mA
• Pulse input (overdrive and underdrive)
• Level input with pre-alarm and main alarm
• Enable input for external start/stop
• Display of flow rate in various units
• Limitation of maximum delivery rate possible
• Stroke feedback output
• Batch dosing with interval and timer function
• Dosing control input
• Alarm relay output
• Analogue output 0/4 - 20 mA
• Diaphragm rupture detection and signalling (optional)
• Double diaphragm system (optional)
• Ethernet/MODBUS interface (optional)
• Fully adjustable stepper motor drive

Characteristics / Technical specifications

• Product number: 10417579
• MATCHCODE: 0104P0760SAE31A6S6SS5JS5J
• Product: MEMDOS
• Type / Model: LP
• Capacity / Flow rate examples: selectable from 4 l/h up to 1020 l/h; example shown 744 l/h at 50/60 Hz against max. 4 bar; maximum versions up to 1020 l/h and up to 16 bar
• Material dosing head and valves: stainless steel (other versions: PVC, PP, PVDF)
• Material suction/pressure connections: stainless steel
• Suction connection: internal threaded connection G1 1/4
• Pressure connection: internal threaded connection G1 1/4
• Suction valve: DN25 spring-loaded 1.4571 / FPM (disc / seal)
• Pressure valve: DN25 spring-loaded 1.4571 / FPM (disc / seal)
• Electrical connection: 1.8 m mains cable with plug (Europe) at 230 V AC
• Electrical drive: 230 V 1ph 50/60 Hz 0.65 kW (EC motor)
• Signal feedback: analogue output 0/4 - 20 mA; stroke feedback output
• Inputs: analogue input 0/4 - 20 mA; pulse input; level input with pre-alarm and main alarm; enable input for external start/stop; dosing control input
• Outputs / Alarms: alarm relay output; diaphragm rupture detection and signalling (optional)
• Control / Display: graphic display with multilingual menu; stroke frequency adjustable precisely via keypad; flow display in various units
• Functions: batch dosing with interval and timer; limitation of maximum delivery; dosing quantity setting in ppm possible
• Options: diaphragm rupture detection, double diaphragm system, Ethernet/MODBUS interface
