Electromagnetic field measuring device RWD - 400

for electromagnetic field mappingwith displayanalog

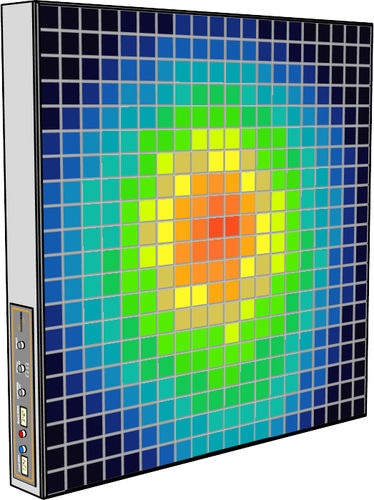

Radio Waves Display 400 The Luxondes radiofrequency to optical conversion panel directly displays the ambient EM-field or the radiation of a transmitting DUT that is placed in front of it. It comprises 400 (20×20) autonomous identical sensors working as elementary visualization pixels. The representation of the EM field is provided through a gradient of colors. On the side of the panel you can change the sensitivity and dynamics of the system. APPLICATION • Direct mapping of the received field • Antenna MIMO optimization • Time reversal evaluation • Energy focusing evaluation • Radiation pattern observations • ... FEATURES • Technology: Digital • Panel area : 1m² • Number of sensor : 400 (20x20) • Sensitivity : -60 dBm to 0 dBm • Minimal dynamic range : 3 dB • Bandwidth : 50 MHz to 3 GHz • Number of displayed colours : 1024 • Sensitivity adjustment: Min and max threshold • Real time function or delay • Delay / MaxHold • Number of color bar : 4 • Viewing exceeded threshold • Weight : 30 Kg
