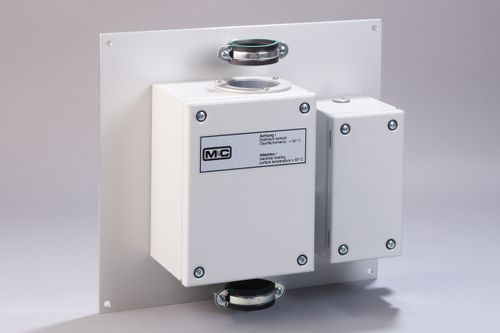

Round tube connector V...-H1
heating

round tube connector
round tube connector
round tube connector
Add to favorites
Compare this product


Characteristics

Structure
round
Other characteristics
heating

Description

- Temperature-controlled straight connector - Heated up to max. +180 °C [+356 °F] - Control thermostat with high-temperature limiter and low-temperature alarm contact - With thermally insulated protective housing - On a heat-decoupled mounting plate for wall mounting - With heated connection fittings to prevent cold bridges - Connections: 2 x Ø 6 mm - Power: 230 V - Material of sample-contacting parts: stainless steel In analytical technology, temperatures must be kept above the sample gas dew point. Therefore, it is absolutely necessary to avoid cold bridges. In order to ensure this, the temperature-controlled M&C hose/tube connectors T...-H1 and V...-H1 are used to connect heated sample lines type 3/4/5-N/M/H with an operating temperature of up to 180 °C. Electrically heated, straight connector type V6‑H1 in a housing, mounted on a base plate 350 x 320 mm, incl. 2 pipe clamps (44 to 55 mm), electrically heated from 0 to 180 °C, adjustable at the integrated control thermostat, high‑temperature limiter with reset key responding at +30 °C above Tset and low‑temperature alarm with potential‑free contact output at ‑30 °C below Tset, power: 230 V/50 Hz, connection: for 6‑mm tube, material: SS 316Ti
