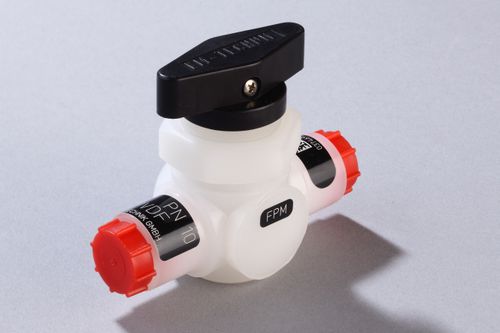

Ball valve 2L/PV-1manualfor gasPVDF
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- manual
- Media
- for gas
- Body
- PVDF
- Number of channels
- 2-way
- Associated function
- switching
- Other characteristics
- compact, corrosion-resistant
- DN
0.25 mm
(0.01 in)- Pressure
10 bar
(145 psi)- Temperature
Min.: -20 °C
(-4 °F)Max.: 80 °C
(176 °F)
Description
- Manually operated 2-way ball valve
- Ball bore: borehole through the middle, DN 4 mm wide
- Connections: 2 x G 1/4" i
- Front-panel mounting
- Corrosion-resistant
- High level of gas tightness
- Material of sample-contacting parts: PVDF, Viton®
The compact ball valves series L are used to shut off gases and liquids in a temperature range up to +80 °C. The construction of the ball valves is designed to meet the requirements of analytical technology. They are mainly used for shutting off and switching over sample, test and reference gases. The used material guarantees an excellent chemical resistance against flue gases, SO2, etc... Regarding solvents, please contact us.
2‑way ball valve type 2L/PV‑1, DN 4, through‑bore hole, connection: 2 x G 1/4" female, material: PVDF, Viton®
Catalogs
Ball Valves Series L/PV-1
3 Pages
