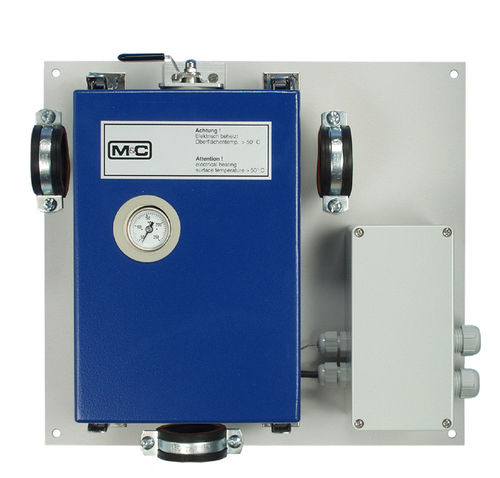

Direct-operated solenoid valve MV2/2-H

2-wayfor gasswitching

- Temperature-controlled 2/2-way solenoid valve - Control thermostat with high-temperature limiter and low-temperature alarm contact - With thermally insulated cover - On a heat-decoupled mounting plate for wall mounting - With heated connection fittings to prevent cold bridges - Power supply for solenoid valve: 24 V DC - Power supply for heating: 230 V - Material of sample-contacting parts: stainless steel, FFKM, FKM In analytical technology, temperatures must be kept above the sample gas dew point. Therefore, it is absolutely necessary to avoid cold bridges. In order to ensure this, the temperature-controlled M&C three-way valves V3/2-H, MV2/2 H and MV3/2 H are used for shutting off or switching over sample gases and test gases up to an operating temperature . Electrically heated 2/2‑way solenoid valve type MV 2/2‑H, mounted on a base plate with insulated cover, electrical heating from 0 to 180 °C adjustable via the integrated thermostat, high‑temperature limiter with reset key responding at +30 °C above Tset and low‑temperature alarm with potential‑free contact output at ‑30 °C below Tset, power supply of the heating: 230 V/50 Hz, 350 W, solenoid valve: 24 V DC, 15 W
