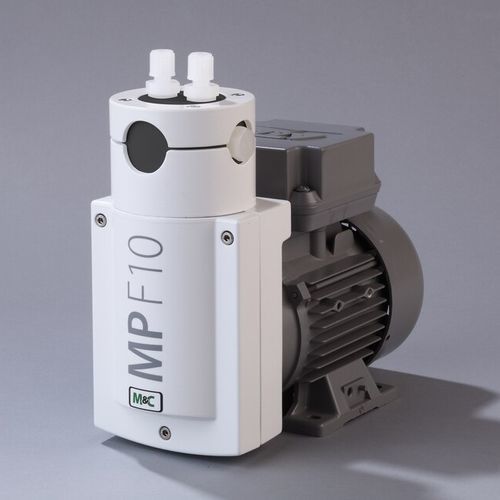

Gas pump MP-F10electricbellowsstationary
Add to favorites
Compare this product
Characteristics
- Fluid
- for gas
- Operation
- electric
- Technology
- bellows
- Mobility
- stationary
- Domain
- industrial
- Applications
- metering
- Material
- stainless steel, PTFE
- Voltage
- 230 V
- Flow
600 l/h
(158.50323 us gal/h)- Pressure
Max.: 2.5 bar
(36.259 psi)Min.: 0.3 bar
(4.351 psi)- Power
65 W
(0.09 hp)
Description
- Full PTFE bellows pump
- Pump head can be rotated in 90° steps and connected to the gas line from the top or side
- Max. capacity: approx. 10 Nl/min with a counter-pressure of ±50 mbar on the vacuum and pressure side
- Max. operating pressure range: 0.3 to 2.5 bar abs.
- Corrosion-resistant
-100 % lubricant-free
- High level of gas tightness
- Long service life
- Power: 230 V/50 Hz, optionally 230 V/60 Hz
- Material of sample-contacting parts: PTFE, PFA, FEP
- Optionally: upper part of the pump head out of stainless steel
