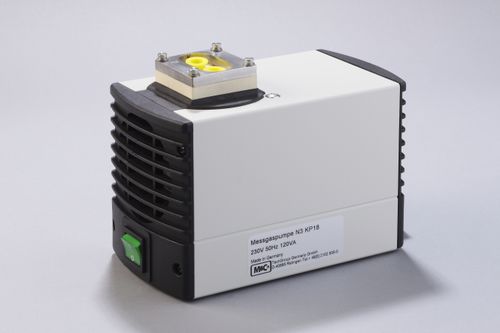

Diaphragm pump N3 KP18for gaselectricstationary
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Fluid
- for gas
- Operation
- electric
- Mobility
- stationary
- Applications
- sampling
- Material
- PTFE, PVDF
- Voltage
- 380 V
- Other characteristics
- compact
- Flow
300 l/h
(79.25162 us gal/h)- Pressure
Max.: 2.5 bar
(36.259 psi)Min.: 0.25 bar
(3.626 psi)
Description
- Diaphragm pump with housing
- Capacity at atmospheric pressure: max. 3 Nl/min
- Max. operating pressure range: 0.25 to 1.95 bar abs.
- Compact design
- Corrosion-resistant
- 100 % lubricant-free
- High level of gas tightness
- Power: 230 V
- Material of sample-contacting parts: PVDF, PTFE, FKM
The compact diaphragm pumps type N3/5/9 are suitable for sampling air, gases and vapours in a temperature range . The construction and the pump capacity are adapted to the requirements of analytical technology.
Diaphragm pump type N3KP18 with housing, connections: G 1/8" f, material: PVDF, Viton®, power: 230 V/50 Hz
