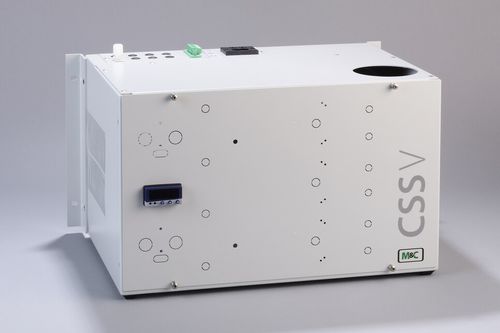

Sample gas conditioning system CSS-V2

-Compact high‑performance gas conditioning unit with compressor cooler -Individually configurable and completely pre-installed according to your specifications -Self‑monitoring and low maintenance -Gas flow rate: max. 2 x 150 Nl/h -Dew point stability < ±0.1 °C [±0.18 °F] -Outlet dew point adjustable from +2 to +7 °C [+35.6 to +44.6 °F] -Power: 230 V -Configurable: heat exchangers, sample gas pumps, flow meters, sample gas filters with integrated liquid alarm sensors, peristaltic pumps and flow alarm sensors with electronic controllers The units CSS-V.. provide a completely pre-installed compact high-performance sample gas conditioning system for continuous use. Due to a large variety of additional options, the gas conditioning units can be adapted to the most diverse requirements of continuous gas analysis technology. Its compact construction only requires little space. The CSS-V units are ready for operation in just a few minutes. This makes time-consuming procurement of individual components and assembly superfluous. Gas conditioning unit type CSS‑V2 prepared for 2 gas paths in a sheet steel housing, consisting of: compressor gas cooler, electronically regulated to +5 °C, power: 230 V/50 Hz
