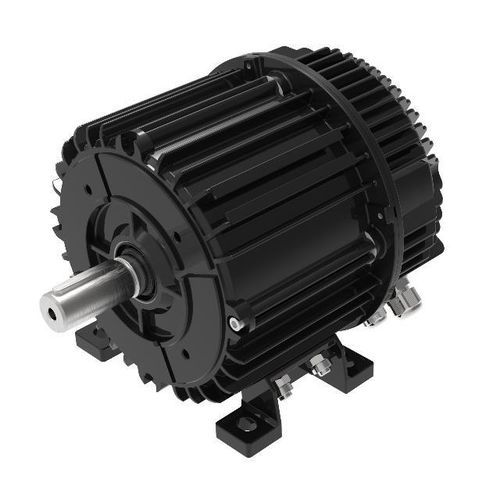

EC motor F112ECI

electronically commutatedIP55IP67

Product Brief
The F112ECI series is a premium IE5 ultra-high efficiency electronically commutated (EC) motor, fully compliant with the IEC 60034-30-1 international standard, engineered for global industrial applications requiring high performance, energy savings and regulatory compliance.

Product Overview
As an industrial drive solution, this series combines industry-leading energy efficiency, robust environmental adaptability and flexible system compatibility. It is designed for OEM manufacturers, system integrators, industrial distributors and end-users seeking long-term operational cost reduction, low maintenance and customizable EC motor solutions for large-scale industrial projects and bulk production.

Full Technical Specifications
Model Series: F112ECI
Power Range: 1.32 kW – 3.52 kW
Energy Efficiency Class: IE5 Ultra-High Efficiency (IEC 60034-30-1)
Operating Ambient Temperature: -25℃ to 40℃
Ingress Protection Class: IP55 – IP67
Supported Communication Protocols: RS485 Modbus, 0–10V, PWM
Standard Mounting Methods: DIN Rail, B14, B3, B34, B5, B35
Comprehensive Protection Functions: Overcurrent, Rotor Blockage, Phase Loss, IPM Over-temperature, Reverse Wind Startup
Global Market Certifications: CE / ETL
Standard Warranty Period: 12 Months

Key Benefits & Business Value

• IE5 ultra-high efficiency delivers significant energy savings (up to ~40% vs. standard IE3 induction motors) for continuous industrial operation, improving ROI and reducing operating costs.
• Robust design and wide operating temperature range (-25℃ to 40℃) plus IP55–IP67 ratings enable reliable performance in harsh, dusty, wet or low-temperature environments.
• Multiple protection functions (overcurrent, rotor blockage, phase loss, IPM over-temperature, reverse-wind startup) increase operational safety and reduce unscheduled downtime and maintenance costs.
• Standardized communication interfaces (RS485 Modbus, 0–10V, PWM) and multiple mounting options simplify integration with mainstream industrial control systems and OEM equipment, reducing engineering effort and retrofit costs.
• CE and ETL certifications support cross-border market access to major regions including Europe and North America.

Target Applications

• HVAC & Ventilation Systems (air handling units, industrial fans, ventilation equipment)
• Industrial Automation & OEM Machinery
• Renewable Energy & Environmental Protection Equipment
• Cold Storage & Commercial Refrigeration Systems
• Water Treatment & Industrial Pump Systems
• Agricultural Automation & Intelligent Breeding Equipment

FAQ

• What is the energy efficiency class of the F112ECI EC motor? The F112ECI series meets the IE5 ultra-high energy efficiency class and is fully compliant with IEC 60034-30-1.
• What certifications does the F112ECI series have? The F112ECI series is CE and ETL certified.
• What is the power range of the F112ECI series? The standard power range is 1.32 kW to 3.52 kW.
• Which communication protocols are supported? RS485 Modbus, 0–10V and PWM are supported for integration with industrial control systems.
• Can the F112ECI series be customized for OEM projects? The series is designed for OEM customization including parameter tuning, protection grade customization and tailored communication options for bulk orders.
• What is the warranty period? Standard warranty period is 12 months; extended warranties can be arranged for large or long-term projects.

Caractéristiques / spécifications techniques

• Model Series: F112ECI
• Power Range: 1.32 kW – 3.52 kW
• Energy Efficiency Class: IE5 Ultra-High Efficiency (IEC 60034-30-1)
• Operating Ambient Temperature: -25℃ to 40℃
• Ingress Protection Class: IP55 – IP67
• Supported Communication Protocols: RS485 Modbus, 0–10V, PWM
• Standard Mounting Methods: DIN Rail; B14; B3; B34; B5; B35
• Protection Functions: Overcurrent; Rotor Blockage; Phase Loss; IPM Over-temperature; Reverse Wind Startup
• Global Certifications: CE, ETL
• Standard Warranty Period: 12 Months
