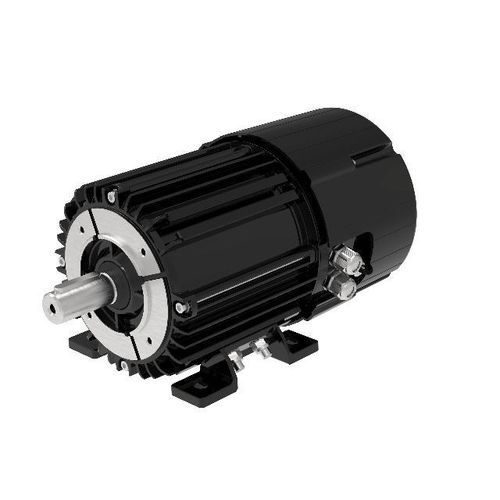

Brushless motor F80ECI

ECelectronically commutatedIP55

Product Brief
The F80ECI series are brushless EC (electronically commutated) motors engineered for industrial and commercial applications that require IE5-level efficiency, flexible control and optional high ingress protection (up to IP67). They target OEMs, system integrators and HVAC/fluid control equipment manufacturers.

Product Overview
Compliant with IEC 60034-30-1, the F80ECI family delivers IE5 ultra-high energy efficiency across a broad power range. Designed to overcome limitations of conventional induction motors, these motors offer multiple communication interfaces and built-in protection features to simplify integration and reduce total cost of ownership (TCO) while meeting global efficiency regulations.

Technical Specifications

• Series model: F80ECI
• Power range: 0.27 kW – 2.26 kW (F80 frame)
• Ambient operating temperature: -25℃ to 40℃
• Protection class: IP55 – IP67 (optional)
• Supported communication: RS485 Modbus, 0–10V, PWM
• Mounting options: DIN rail, B14, B3, B34, B5, B35
• Protection functions: overcurrent, rotor blockage, phase loss, IPM over-temperature, reverse-wind startup protection
• Global certifications: CE / ETL
• Standard warranty: 12 months
• Energy efficiency class: IE5 (IEC 60034-30-1)

Key Benefits & Business Value

• IE5 efficiency: Significant energy savings and compliance with stringent efficiency standards.
• Environmental durability: Optional IP55–IP67 and wide temperature range enable operation in dusty, humid or high-vibration environments.
• Flexible control & integration: Multiple control interfaces and standard mounting variants simplify incorporation into diverse equipment.
• Built-in protections: Core safety functions reduce downtime and protect connected systems.
• Certifications & warranty: CE/ETL approvals and a 12-month warranty support global deployment and risk mitigation.

Target Industrial & Commercial Applications

• HVAC and commercial ventilation systems
• Water pumps and fluid control equipment
• Industrial automation and conveying systems
• Food & beverage processing lines
• Commercial refrigeration and cold-chain equipment
• Auxiliary systems for renewable energy

FAQ
Q: What energy efficiency class does the F80ECI series achieve?
A: The F80ECI series complies with IEC 60034-30-1 and achieves the IE5 efficiency class.

Q: Which communication protocols are supported?
A: RS485 Modbus, 0–10V and PWM.

Q: Can the motor operate in extreme temperatures?
A: Yes. Operating range is -25℃ to 40℃; optional protection variants extend suitability for harsher environments.

Q: What mounting options are available?
A: DIN rail, B14, B3, B34, B5, B35.
