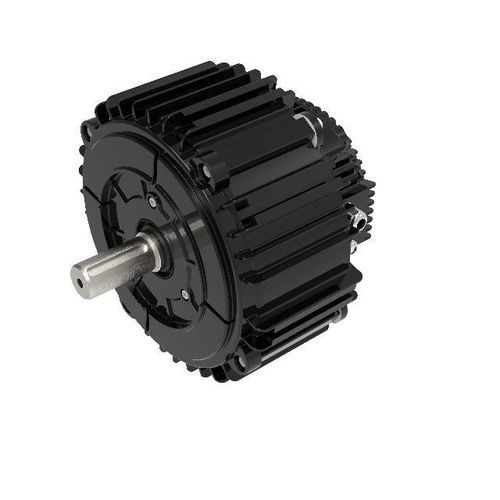

EC motor F160ECI

electronically commutatedIP55IP67

Product Brief
Our F160ECI EC motor is a next-generation, ultra-high-efficiency electronically commutated motor engineered for demanding industrial and commercial applications.

Product Overview
Compliant with IEC 60034-30-1 and rated IE5, the F160ECI covers 2.2–3.0 kW with a wide ambient range (-25℃ to 40℃) and protection options from IP55 to IP67. It integrates multiple built-in protections and flexible control interfaces to ensure dependable operation in harsh environments. The series supports customization for OEMs, system integrators and distributors to meet project-specific and regulatory needs across markets.

Full Technical Specifications
Core parameters — standard specification:

• Model: F160ECI
• Rated power: 2.2 kW – 3.0 kW
• Operating ambient temperature: -25℃ to 40℃
• Enclosure protection: IP55 – IP67
• Communication protocols: RS485 Modbus, 0–10V, PWM
• Mounting options: DIN Rail, B14, B3, B34, B5, B35
• Protection functions: overcurrent, rotor blockage, phase loss, IPM over-temperature, reverse-wind startup protection
• Certifications: CE, ETL
• Warranty: 12 months
• Energy efficiency: IE5 (IEC 60034-30-1)

Key Benefits & Business Value
IE5 ultra-high efficiency for significant operational cost reduction
The F160ECI achieves IE5 efficiency, delivering up to 30–40% lower energy consumption compared with standard IE3 induction motors. In continuous industrial use this can produce substantial annual electricity savings and typical ROI under 12 months for large retrofits.

Robust environmental adaptability for harsh industrial scenarios
With IP55–IP67 protection and -25℃ to 40℃ operation, the motor maintains stable performance in dusty, humid and extreme-temperature conditions, reducing failure rates and unplanned downtime.

Flexible integration for OEM & ODM projects
Multiple mounting options, adjustable control protocols and customizable parameters enable seamless integration into diverse equipment, avoiding costly redesigns and shortening time-to-market.

Global compliance & certified quality for cross-border business
CE and ETL certifications facilitate entry to major markets and simplify distribution and compliance for international projects.

Target Industrial & Commercial Applications

• HVAC & commercial air handling units (AHU)
• Industrial pumps & fluid handling systems
• Industrial ventilation & extraction equipment
• General industrial machinery & automation systems
• Agricultural greenhouse ventilation & climate control
• Renewable energy auxiliary drive systems

FAQ

• What is the minimum order quantity (MOQ) for bulk orders? — Standard MOQ is 5 units; tiered discounts from 50 units. Custom OEM MOQs are confirmed during pre-sales.
• Can the F160ECI be customized for specific equipment? — Yes. Voltage, mounting flanges, shaft dimensions, protection level and communication protocols can be customized.
• How much energy does this IE5 motor save versus standard induction motors? — Typically 30–40% less energy than IE3 induction motors under comparable conditions, with greater savings at partial load.

Order & Global Support
We provide end-to-end ordering for industrial clients, distributors and OEM partners: flexible shipping (sea, air, express), DDP where available, multilingual pre-sales consulting, technical parameter matching, custom design, free integration support and bulk-stock planning.

Technical Specifications (Summary)

• Model: F160ECI
• Rated Power Range: 2.2 kW – 3.0 kW
• Operating Temperature: -25℃ to 40℃
• Protection Rating: IP55 – IP67
• Protocols: RS485 Modbus, 0–10V, PWM
• Mounting: DIN Rail, B14, B3, B34, B5, B35
• Protections: Overcurrent, Rotor Blockage, Phase Loss, IPM Over-temperature, Reverse Wind Startup
• Certifications: CE, ETL
• Warranty: 12 months
• Energy Efficiency: IE5 (IEC 60034-30-1)
