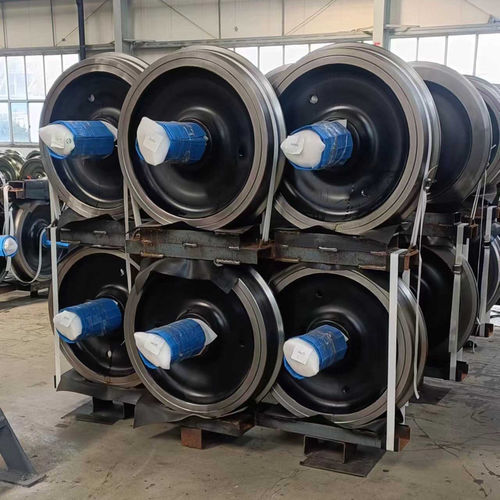

Freight railway wheelset BA004

EN 13260AAR S-660TSI

The 920mm Railway Wheel Set With TSI is designed for heavy freight wagons, providing a reliable and sturdy solution for the transportation of substantial loads. Its design and materials make it well-suited for the challenges posed by freight operations. - Key Features: - Axle Load: Capable of supporting an axle load of up to 23.5 tons, making it suitable for heavy-duty freight transportation. - Maximum Speed: With a maximum speed rating of 120 km/h, the BA004 Wheel Set ensures efficient and reliable performance during high-speed freight operations. - Nominal Wheel Diameter: The nominal diameter of a new wheel is 920mm, providing stability and adherence to industry standards. - Worn Out Limit: The wheel is designed with a worn-out limit of 840mm, ensuring clear guidelines for maintenance and replacement. - Material Compliance: The wheel material, ER7, adheres to the standards outlined in EN 13262 and BN 918 277, guaranteeing quality and conformity. - Axle Material: Crafted from EA1N in accordance with EN 13261 and BN 918 274, the axle material ensures robustness and durability under heavy loads. - Specifications: - Material: Forged Steel - Standards: AAR M-101, UIC 811-1, EN13261, IRIS 16/95, BS 5892, JIS E4502, TB/T 2945 - Applications: Freight Wagon Wheels, Passenger Coach Wheels, Locomotive Wheels and many other industrial or mine vehicles wheels - Size: 400--1250mm, According to customers' drawings - Production Capacity: 10,000 pcs per year - Testing: Chemical analysis, Metallographic, Mechanical analysis, Ultrasonic testing, Magnetic testing, Impact testing, Hardness testing, Surface quality and dimension report - Warranty: 5 years
