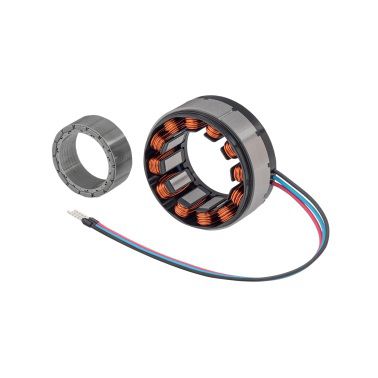

DC motor IA-B4BZA/IB-B4BZA

brushless48 Vwaterproof

● Main Applications Collaborative Robots ● Product Features - Suits a Wide Range of Applications The frameless structure allows a high degree of freedom in design to match the shape, structure, size, etc. of the customer's product, making it suitable for a wide range of applications. - Makes Your Products Smaller and Lighter Can be built in as is. This leads to further downsizing and weight reduction of your products. - Energy-Saving Highly efficient magnetic circuit design that saves energy with less energy loss even when used for long periods of time. - Smooth Movement Low cogging for smooth motion. Outer Diameter of Stator: Φ75.0 mm Inner Diameter of Rotor: Φ35.0 mm Stator Length: 32.0 mm Rotor Length: 18.4 mm Weight: 0.36 kg Detailed specifications and drawings can be found on our solution site. Please access the link at the top right of this article. You can also download instruction manuals and 3D drawing data from this link: https://solution.mabuchi-motor.com/en/products/iaib_series/iaib_b4bza
