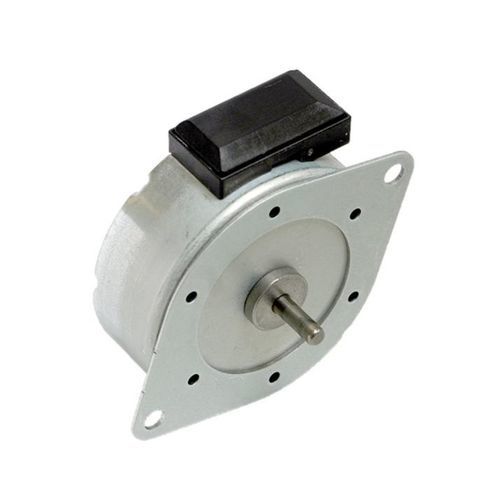

Stepper motor KFL49L

This is a standard PM-type stepping motor with an outer diameter of 49 mm.
In addition to its compact size, high torque, and long service life, it enables positioning via open-loop control.

Drive method: Bipolar constant current / Unipolar constant current"
Coil resistance: 5Ω
Step angle: 7.5°
Number of steps: 48
Insulation resistance: 100MΩ min. (DC500V)
Dielectric strength: AC500V (50Hz, 1min)
Insulation Class: Class E
Size: Φ49×29.5mm
Weight: 195g
