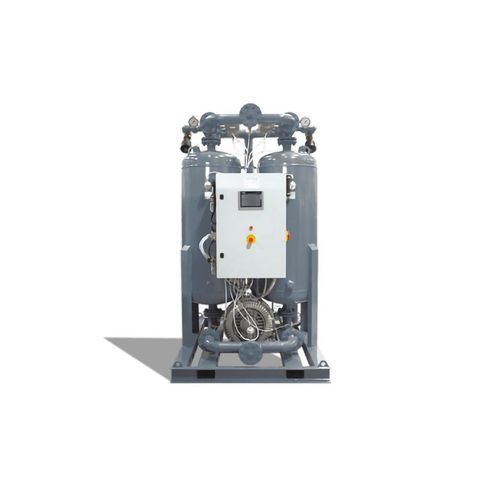

Desiccant compressed air dryer DBP series
Add to favorites
Compare this product
Characteristics
- Technology
- desiccant
- Capacity
Max.: 180 m³/min
(6,356.64 ft³/min)Min.: 14.2 m³/min
(501.47 ft³/min)- Working pressure
10 bar
(145.04 psi)- Operating temperature
Max.: 45 °C
(113 °F)Min.: 0 °C
(32 °F)- Ambient temperature
40 °C
(104 °F)- Dew point
-40 °C
(-40 °F)
Description
Product overview
MAC3 markets the DBP range of externally regenerated adsorption dryers with integrated filters. These high-performance dryers are designed for stable dew point control and reliable compressed air quality in industrial applications.
Features
Fields of application
Performance (models)
MODEL | AIR FLOW (m3/min) | CONNECTION | INTEGRATED FILTERS | DIMENSIONS (mm L x W x H)
DBP 850 | 14,2 | G 2" | GO 851 MX + MY + MP | 1296 x 1180 x 2299
DBP 1000 | 16,7 | G 2" | GO 1210 MX + MY + MP | 1200 x 1310 x 2415
DBP 1250 | 20,8 | DN 80 | GO 1820 MX + MY + MP | 1610 x 1270 x 2468
DBP 1500 | 25,0 | DN 80 | GO 1820 MX + MY + MP | 1610 x 1270 x 2563
DBP 1800 | 30,0 | DN 80 | GO 1820 MX + MY + MP | 1563 x 1515 x 2479
DBP 2200 | 36,7 | DN 80 | GO 2220 MX + MY + MP | 1563 x 1455 x 2789
DBP 2700 | 45,0 | DN 80 | GO 2700 MX + MY + MP | 1615 x 1514 x 2836
DBP 3200 | 53,3 | DN 100 | F 3200 MX + MY + MP | 1710 x 1660 x 3054
DBP 3600 | 60,0 | DN 100 | F 4300 MX + MY + MP | 1710 x 1660 x 3268
Technical specifications
MAC3 markets the DBP range of externally regenerated adsorption dryers with integrated filters. These high-performance dryers are designed for stable dew point control and reliable compressed air quality in industrial applications.
Features
- -40°C dew point
- Line filters included: (MP): Particles 5µm / (MX): Filtration 1µm / (MY): Residual oil 0,01µm
- Integrated dew point monitoring & control
- Maximum working pressure: 10 bar
- Maximum ambient temperature: 40°C
- Maximum inlet temperature: 45°C
- Voltage: 400V/3/50 Hz
- Siemens S7-1200 electronic controller
- Externally regenerated adsorption technology (DBP series)
Fields of application
- Woodworking
- Power generation
- Food industry
- Metallurgy
- Major industries
- Craft
- Agriculture
- Medical – Pharmaceutical
- Surface treatment
- Automotive industry
Performance (models)
MODEL | AIR FLOW (m3/min) | CONNECTION | INTEGRATED FILTERS | DIMENSIONS (mm L x W x H)
DBP 850 | 14,2 | G 2" | GO 851 MX + MY + MP | 1296 x 1180 x 2299
DBP 1000 | 16,7 | G 2" | GO 1210 MX + MY + MP | 1200 x 1310 x 2415
DBP 1250 | 20,8 | DN 80 | GO 1820 MX + MY + MP | 1610 x 1270 x 2468
DBP 1500 | 25,0 | DN 80 | GO 1820 MX + MY + MP | 1610 x 1270 x 2563
DBP 1800 | 30,0 | DN 80 | GO 1820 MX + MY + MP | 1563 x 1515 x 2479
DBP 2200 | 36,7 | DN 80 | GO 2220 MX + MY + MP | 1563 x 1455 x 2789
DBP 2700 | 45,0 | DN 80 | GO 2700 MX + MY + MP | 1615 x 1514 x 2836
DBP 3200 | 53,3 | DN 100 | F 3200 MX + MY + MP | 1710 x 1660 x 3054
DBP 3600 | 60,0 | DN 100 | F 4300 MX + MY + MP | 1710 x 1660 x 3268
Technical specifications
- Dew point: -40°C
- Integrated line filtration variants: MP (particles 5µm), MX (filtration 1µm), MY (residual oil 0,01µm)
- Dew point monitoring and control integrated
- Maximum working pressure: 10 bar
- Maximum ambient temperature: 40°C
- Maximum inlet temperature: 45°C
- Electrical supply: 400V / 3 / 50 Hz
- Controller: Siemens S7-1200 electronic controller
- Externally regenerated adsorption technology (DBP series)
