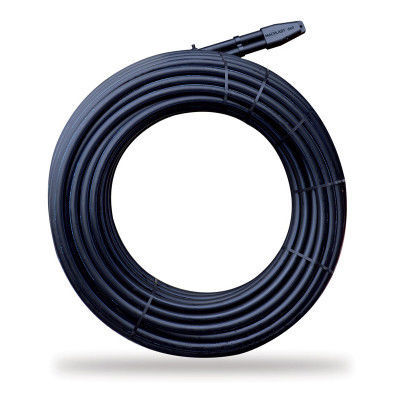

Borehole probe 322

industrialheavy-duty

Two-way geothermal probe with head and pipe, specially designed for installation on geothermal systems with heat pump. - Monolithic head with internal processing for water recirculation and discharge of any deposits of mud. - Tapered and compact shape that reduces the ground perforation diameter for easy insertion. - The socket-welded tubing ensures full bore passage. - Made of high density polyethylene for optimal performance even in compacted soil. - Fitted with HDPE tubing available in different lengths. - Realisation according to standard UNI 11467. - Probe head pressure drop less than 10mbar and 1m/s flow speed according to VDI 4640. Additional features: - Provided with test certificate. Standards: - UNI 11467 Materials: - High density polyethylene PE100. Technical characteristics / specifications: - PN: 16 bar - SDR: 11 Available dimensions: Reference | DE (mm) | Length (mt) | Volume (lt) | Weight (kg) 3220032080 | 32 | 80 | 85 | 47.00 3220032090 | 32 | 90 | 95 | 52.00 3220032100 | 32 | 100 | 106 | 58.00 3220032125 | 32 | 125 | 133 | 73.50 3220040080 | 40 | 80 | 134 | 69.00 3220040090 | 40 | 90 | 150 | 78.00 3220040100 | 40 | 100 | 167 | 86.00 3220040125 | 40 | 125 | 210 | 107.50 Minimum purchase order quantity: 1 piece
