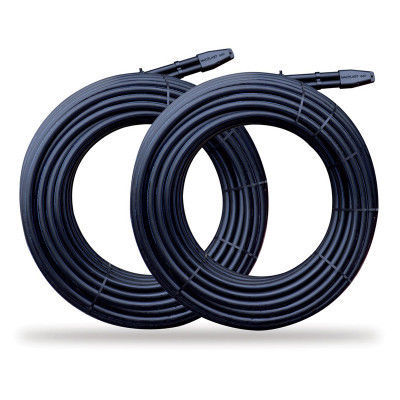

Borehole probe 325

flexiblewith stainless steel tube

Single geothermal probe with head and pipe, specially designed for installation on geothermal systems with heat pump. - Materials: High density polyethylene PE100. - Monolithic head with internal processing for water recirculation and discharge of any deposits of mud. - Tapered and compact shape that reduces the ground perforation diameter for easy insertion. - The socket-welded tubing ensures full bore passage. - Made of high density polyethylene for optimal performance even in compacted soil. - Fitted with HDPE tubing available in different lengths. - Realisation according to standard UNI 11467. - Probe head pressure drop less than 10mbar and 1m/s flow speed according to VDI 4640. - Provided with test certificate. Reference Table: - 3250032080: DE 32mm, DN 1", Length 80m, Volume 170l, Weight 94kg - 3250032090: DE 32mm, DN 1", Length 90m, Volume 190l, Weight 104kg - 3250032100: DE 32mm, DN 1", Length 100m, Volume 212l, Weight 116kg - 3250032125: DE 32mm, DN 1", Length 125m, Volume 266l, Weight 147kg - 3250040080: DE 40mm, DN 1 1/4", Length 80m, Volume 268l, Weight 138kg - 3250040090: DE 40mm, DN 1 1/4", Length 90m, Volume 300l, Weight 156kg - 3250040100: DE 40mm, DN 1 1/4", Length 100m, Volume 334l, Weight 172kg - 3250040125: DE 40mm, DN 1 1/4", Length 125m, Volume 420l, Weight 215kg - PN 10 bar - SDR 11 - Minimum purchase order quantity: 1 piece - Available DE (mm): 32, 40 - Available DN (inch): 1", 1 1/4" - Available Length (mt): 80, 90, 100, 125 - Available Volume (lt): 170, 190, 212, 266, 268, 300, 334, 420 - Available Weight (kg): 94, 104, 116, 138, 147, 156, 172, 215 - Category: Geothermal system components - Standard: UNI 11467 - Pressure: PN 10 bar - SDR: 11 - Test certificate provided - Made of high density polyethylene PE100
