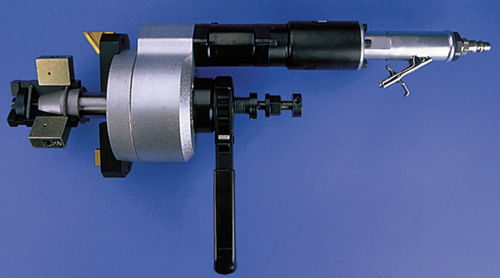

Titanium cutting machine Mini EPL

manually-controlledchamferingfor pipe ends

Rugged, Fast, and Reliable Mactech Mini Series end prep tools are the most ruggedly built and efficiently designed tools available today for milling heavy wall pipe and tube from 1.25" ID to 6.625" OD. Rigidly mounting to the lD by a draw rod clamping assembly which centres the tool automatically, they utilise a ratchet mechanism for feeding the cutter head. Featuring titanium nitride coated cutter blades for smooth milling, they produce a clean, continuous chip and square off the end of the pipe or tube without requiring cutting oils. Key Features Tool rigidly mounts to pipe or tube lD Self-centering draw rod assembly Single gear drive system for optimum performance One mandrel covers majority of the cutting range Cutter blade locking design eliminates chatter Cutter blades index easily for proper set up Pneumatically powered with torque-free operation Removes tube stub welds and prepares the header Automatically squares off the end of pipe or tube
