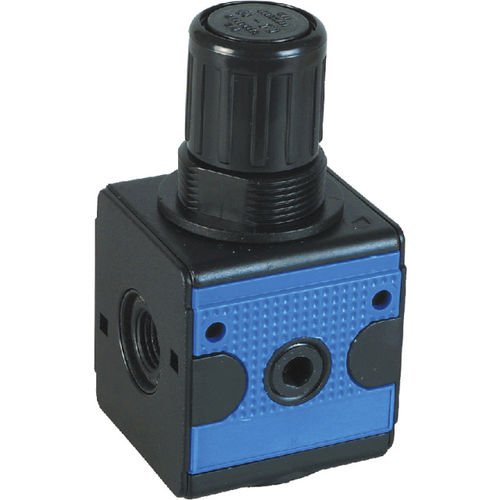

Compressed air pressure regulator 219055 membranesingle-stageNBR
Add to favorites
Compare this product
Characteristics
- Product
- for compressed air
- Technology
- membrane
- Number of stages
- single-stage
- Material
- NBR
- Applications
- industrial
- Other characteristics
- line
- Pressure
Max.: 16 bar
(232.06 psi)Min.: 0.1 bar
(1.45 psi)- Flow
1,500 m³/h
(52,972 ft³/h)- Orifice diameter
0.25 in
- Temperature
Max.: 60 °C
(140 °F)Min.: -10 °C
(14 °F)
Description
Pressure regulator series Bloc 1
Construction type:
Membrane-pressure regulator with secondary venting
Size:
1
Series:
Bloc
Mounting type:
Line fitting, control panel mounting, mounting kit or 2 through-holes
Mounting position:
arbitrary
Pressure gauge connection thread:
G 1/4 i
Material of casing:
Die-cast zinc
Material of membrane/seals:
NBR/Ms
Scope of delivery:
ohne Manometer
Note:
For lockable version see www.mader-shop.de
Price information:
Due to price increases on the raw materials market, some items include a surcharge
