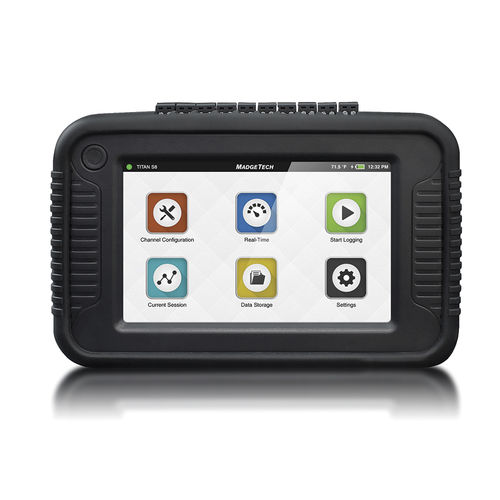

Voltage data-logger Titan S8

currenttemperaturefrequency

Overview
The Titan S8 is an 8-channel data acquisition logger with a full-color 5 inch touchscreen for real-time monitoring. It measures and records temperature, voltage, current, pulse and frequency and accepts thermocouple, RTD and thermistor probes. With 1 GB internal memory (up to 5,000,000 readings) and USB export, it supports on-site data collection and transfer to MadgeTech 4 software for analysis.

Key Features

• WiFi & Ethernet enabled for remote access
• Large 5-inch full-color touchscreen for simultaneous channel viewing
• Independent configuration per channel (engineering units, alarms)
• Direct support for thermocouple, RTD and thermistor inputs

Description
The handheld Titan S8 provides a compact, all-in-one solution for industrial data acquisition. Operators can view all 8 channels simultaneously on the touch display without a PC. The unit logs current, voltage, temperature, pulse and frequency with customizable channel setups and alarm thresholds. Data is stored internally and can be exported via USB and imported into MadgeTech 4 for detailed analysis. Optional wireless dongle extends connectivity options.

Caractéristiques / spécifications techniques

• Channels: 8 (Temperature, Current, Frequency, Voltage, Pulse)
• Battery life: 10 hours continuous use
• Material: PC/ABS enclosure with TPE protective boot
• Dimensions: 6.65 in x 4.40 in x 1.41 in (168.9 mm x 111.8 mm x 35.8 mm) — data logger only; 5 in touchscreen
• IP Rating: IP20
• Internal memory: 1 GB (up to 5,000,000 readings)
• Display: Full-color 5 inch touchscreen
• Connectivity: WiFi and Ethernet enabled (optional wireless dongle available)
• Data export: USB memory device; compatible with MadgeTech 4 software
• Configurable: Independent channel configuration, engineering units and alarms
