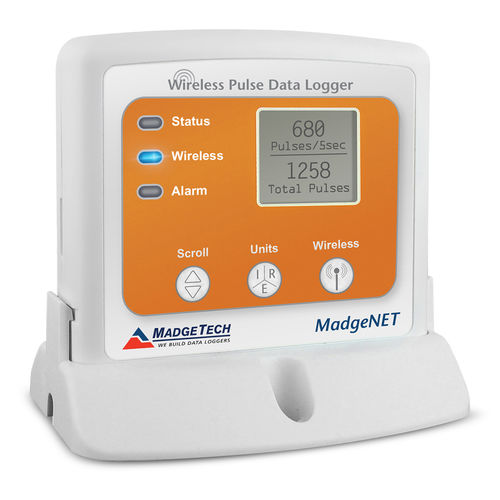

Pulse data-logger RFPulse2000Awirelessradio frequencywith LCD display
Add to favorites
Compare this product
Characteristics
- Measured quantity
- pulse
- Connector type
- wireless, radio frequency
- Display
- with LCD display
- Applications
- for monitoring
- Other characteristics
- battery-powered, digital, continuous, low-consumption, with automatic report generation, with web interface
- Memory capacity
16,128 unit
Description
Description
The RFPulse2000A is a wireless pulse data logger that records pulse output signals from a variety of sensors. Includes certificate of conformance. The RFPulse2000A calculates pulse count and pulse rate. This device features an LCD screen which provides instant access to current readings, minimum, maximum and average statistics. Equipped with user-programmable alarms, the RFPulse2000A will alert or notify users via email or text when thresholds are breached, allowing users to take immediate action. The RFPulse2000A is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units. The RFPulse2000A is also MadgeTech Cloud Services ready, providing users the ability to monitor data remotely on any smartphone, tablet or internet enabled device. Note: RFC wireless interface required.
Key Features
General
Memory: 16,128 readings
Reading Rate: 1 reading every second up to 1 reading every 24 hours
Baud Rate: 250,000
LED Indicators: Green, Blue & Red
Battery Life: 5 years typical at a 10 minute reading rate
Material: ABS plastic
Dimensions: 3.5 in x 3.0 in x 0.95 in (88.9 mm x 76.2 mm x 24.1 mm) - Data logger only
IP Rating: IP22
Operating Environment: -20 °C to +60 °C (-4 °F to +140 °F), 0 %RH to 95 %RH non-condensing
Required Interface Package: RFC1000
Approvals: US (FCC), CA (IC), CE, South Korea (KCC), China (CMIIT), Japan (LCIE)
Pulse
Maximum Pulse Rate: 10 KHz
Pulse Input Range: 0 to 4294967295 Pulses
Pulse Input Low: <720 mV
Pulse Input High: >1.070 V
Wireless
RF Carrier Frequency: 2.45 GHz IEEE 802.15.4 ultra-low power MadgeNET Wireless Transceiver with fully bi-directional communication.
Output Power: +0 dBm typical
Receiver Sensitivity: -95 dBm typical
Typical outdoors Line of sight: Up to 2000 ft
Typical Indoors line of sight: Up to 500 ft
Technical Specifications
The RFPulse2000A is a wireless pulse data logger that records pulse output signals from a variety of sensors. Includes certificate of conformance. The RFPulse2000A calculates pulse count and pulse rate. This device features an LCD screen which provides instant access to current readings, minimum, maximum and average statistics. Equipped with user-programmable alarms, the RFPulse2000A will alert or notify users via email or text when thresholds are breached, allowing users to take immediate action. The RFPulse2000A is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units. The RFPulse2000A is also MadgeTech Cloud Services ready, providing users the ability to monitor data remotely on any smartphone, tablet or internet enabled device. Note: RFC wireless interface required.
Key Features
- Digital Display
- Continuous Monitoring
- Configurable Alarms & Notifications
General
Memory: 16,128 readings
Reading Rate: 1 reading every second up to 1 reading every 24 hours
Baud Rate: 250,000
LED Indicators: Green, Blue & Red
Battery Life: 5 years typical at a 10 minute reading rate
Material: ABS plastic
Dimensions: 3.5 in x 3.0 in x 0.95 in (88.9 mm x 76.2 mm x 24.1 mm) - Data logger only
IP Rating: IP22
Operating Environment: -20 °C to +60 °C (-4 °F to +140 °F), 0 %RH to 95 %RH non-condensing
Required Interface Package: RFC1000
Approvals: US (FCC), CA (IC), CE, South Korea (KCC), China (CMIIT), Japan (LCIE)
Pulse
Maximum Pulse Rate: 10 KHz
Pulse Input Range: 0 to 4294967295 Pulses
Pulse Input Low: <720 mV
Pulse Input High: >1.070 V
Wireless
RF Carrier Frequency: 2.45 GHz IEEE 802.15.4 ultra-low power MadgeNET Wireless Transceiver with fully bi-directional communication.
Output Power: +0 dBm typical
Receiver Sensitivity: -95 dBm typical
Typical outdoors Line of sight: Up to 2000 ft
Typical Indoors line of sight: Up to 500 ft
Technical Specifications
- Model: RFPulse2000A
- Part number: 901420-00
- Memory: 16,128 readings
- Reading Rate: 1 s up to 24 h
- Maximum Pulse Frequency: 10 KHz
- Pulse Input Range: 0 to 4,294,967,295 pulses
- Wireless Interface: 2.45 GHz MadgeNET (IEEE 802.15.4)
- Battery Life: typical 5 years (at a 10 minute reading rate)
- Material: ABS plastic
- Dimensions: 3.5 in x 3.0 in x 0.95 in (88.9 x 76.2 x 24.1 mm)
- IP Rating: IP22
- Operating Temperature: -20 °C to +60 °C (-4 °F to +140 °F)
- Required Interface: RFC1000
- Approvals: FCC, IC, CE, KCC, CMIIT, LCIE
