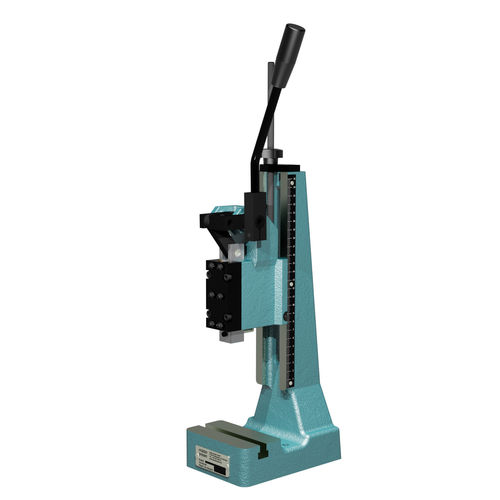

Toggle press VK 500-40 series

manualstampingpunching

Working Stroke [mm]: - 0 Throat [mm]: - 63 Troat [mm]: - 0 T-slot [mm] similar to DIN 650: - 10 Ram bore Øxdepth [mm]: - 10H7 x 25 Ram Ø [mm] / Surface F [mm²]: - 21 x 21 Space required CxG [mm]: - 110 x 160 mäder toggle presses only produce their rated force at the end of the stroke, the bottom dead centre (BDC). In doing so, the high working pressure of the press is achieved using the toggle mechanism with a relatively low effort (approximately 150N) on the part of the user. Toggle presses are therefore used where the full force of the press is only required over a short distance at the end of the working stroke, e.g. in assembling, punching, riveting, stamping, gluing etc. Standard throats of 63mm, 100mm and 250mm allow a broad selection of partsto be processed. Depending of the model daylight can be adjusted steplessly from 43 mm to 375mm. mäder manual toggle presses can be upgraded with various extras which enhance the functionality of the press. The square ram has significant advantages compared with the round ram: • - Absolute protection against twisting • - Hardened and precisely ground ram • - Press ram guide free from play • - Readjustable jib strips for square ram • - Large tool locating surface • - Guides in tool therefore usually unnecessary • - Practically maintenance-free operation
