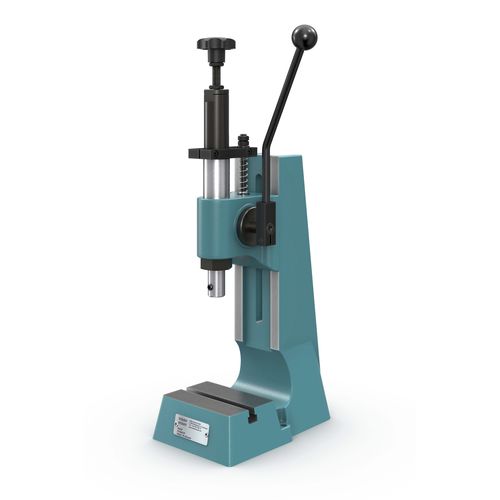

Impact press HP 200 FE

manually-controlledstampingriveting

Working Stroke [mm]: - 60 Throat [mm]: - 75 Troat [mm]: - T-slot [mm] similar to DIN 650: - Ram bore Øxdepth [mm]: - 10H7 x 25 Ram Ø [mm] / Surface F [mm²]: - 22 Space required CxG [mm]: - 140 x 220 Ideal for stamping small quantities or for riveting. The round ram of mäder pressen is characterized by high sturdiness, ground surface and precise ram bore. Tools can be fixed securely in the ram bore by means of a fixation screw. Round rams of mäder pressen are either guided in precision honed bores or in precise Teflon bushings. The mode of operation is very simple: as soon as the ram with its clamped tool reaches the workpiece, a spring is tensioned by manual force on the hand lever. at the end of the spring-tensioning stroke, the stored spring energy is then abruptly transmitted to the workpiece. The impact force of the press can be infinitely set using the star knob.
