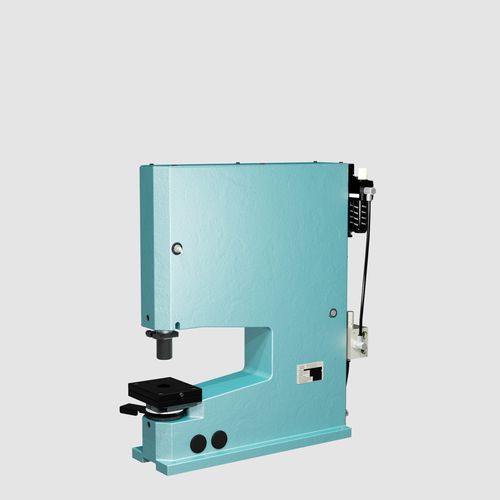

Pneumatic press KP 3.1 W

stampingpunchingriveting

Working Stroke [mm]: - Throat [mm]: - 275 Troat [mm]: - T-slot [mm] similar to DIN 650: - Ram bore Øxdepth [mm]: - 14H7 x 30 Ram Ø [mm] / Surface F [mm²]: - 40 Space required CxG [mm]: - mäder pneumatic toggle presses reach their naximum force at the end of the stroke, the bottom dead center (BDC). The optimum transmission ratios of the toggle press produce high force at the end of the stroke, ensuring low air consumption. Thanks to the resultant low energy consumption, mäder pneumatic toggle presses are an economical means of production not only at the time of purchase, but also in the long term. Toggle presses are used when the full force of the press is only needed at the end of stroke, e.g. for punching, riveting, stamping, gluing etc. Pneumatic toggle presses are available with a force of 5kN, 10 kN, 24kN, 32kN and 60kN.. All direct acting pneumatic presses are available as an automation module or can be supplied with mäder controls for individual workstations.. The round ram of mäder pressen is characterized by high sturdiness, ground surface and precise ram bore. Tools can be fixed securely in the ram bore by means of a fixation screw. Round rams of mäder pressen are either guided in precision honed bores or in precise Teflon bushings. The press for the Press & Tool system with intergrated, timesaving tool setting system: MICRO ADJUST The precision height adjustment of the press table simplifies the set-up of Press & Tool Concept presses and increases their application possibilities. The standard scale disc enables a reading accuracy of 0.1 mm.
