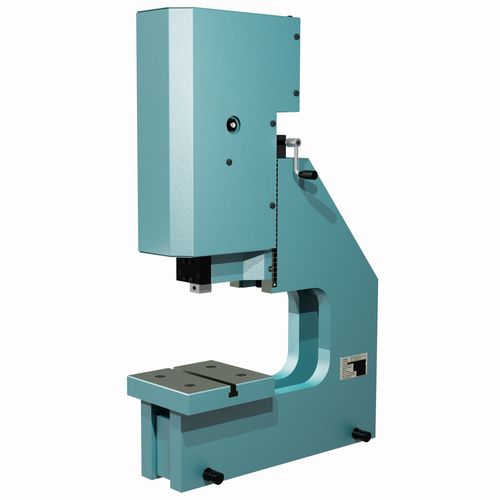

Pneumatic press XL-VKL 2400-40-300

stampingpunchingriveting

Working Stroke [mm]: - Throat [mm]: - 300 Troat [mm]: - 130 T-slot [mm] similar to DIN 650: - 14 Ram bore Øxdepth [mm]: - 12H7 x 30 Ram Ø [mm] / Surface F [mm²]: - 31 x 31 Space required CxG [mm]: - 200 x 560 mäder pneumatic toggle presses reach their naximum force at the end of the stroke, the bottom dead center (BDC). The optimum transmission ratios of the toggle press produce high force at the end of the stroke, ensuring low air consumption. Thanks to the resultant low energy consumption, mäder pneumatic toggle presses are an economical means of production not only at the time of purchase, but also in the long term. Toggle presses are used when the full force of the press is only needed at the end of stroke, e.g. for punching, riveting, stamping, gluing etc. Pneumatic toggle presses are available with a force of 5kN, 10 kN, 24kN, 32kN and 60kN.. All direct acting pneumatic presses are available as an automation module or can be supplied with mäder controls for individual workstations.. The square ram has significant advantages compared with the round ram: • - Absolute protection against twisting • - Hardened and precisely ground ram • - Press ram guide free from play • - Readjustable jib strips for square ram • - Large tool locating surface • - Guides in tool therefore usually unnecessary • - Practically maintenance-free operation Tools can be securly fixed by a screw. Quality features: • - Factory pre-set pressure point • - Right-angled gearbox for simple height adjustment of the press head
