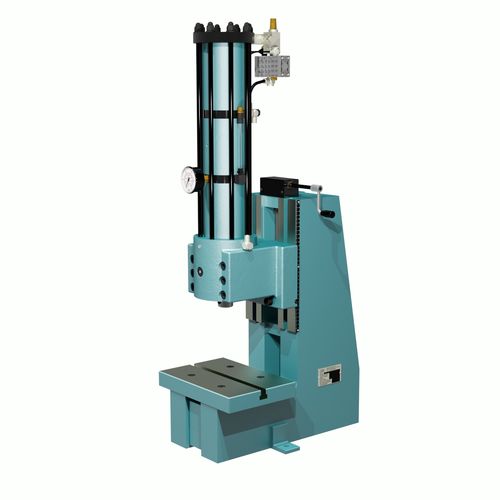

Hydraulic press HP 10.000 HV series

hydro-pneumaticbendingassembly

Working Stroke [mm]: - 10 Throat [mm]: - 150 Troat [mm]: - 0 T-slot [mm] similar to DIN 650: - 14 Ram bore Øxdepth [mm]: - 20H7 x 34 Ram Ø [mm] / Surface F [mm²]: - 40 Space required CxG [mm]: - 310 x 500 mäder hydropneumatic presses are initially driven by compressed air only and activate the hydraulic power stroke automatically. They combine the advantages of pneumatic and hydraulic presses. In the pneumatically driven fast stroke, the workpiece is approached rapidly with low force. The hydraulic power stroke is then activated automatically when resistance is encountered. Because of this, the applied energy is used to the most economic effect particularly in these models. Hp type hydro-pneumatic presses are availble in various sizes with capacities from 30 kN up to 100 kN and throatds from 100 mm to 300 mm. All hydropneumatic presses are available as an automation module or can be supplied with mäder controls for individual workstations.. The round ram of mäder pressen is characterized by high sturdiness, ground surface and precise ram bore. Tools can be fixed securely in the ram bore by means of a fixation screw. Round rams of mäder pressen are either guided in precision honed bores or in precise Teflon bushings. Quality features: • - Anti-twist, hardened ram • - Long, honed ram guide for maximum precision • - Two power stroke lengths provided as standard • - Simple adjustment of the height of the press head using a threaded spindle and right-angle gearbox • - Side-mounted measuring strip for fast reproduction of settings when changing the tool
