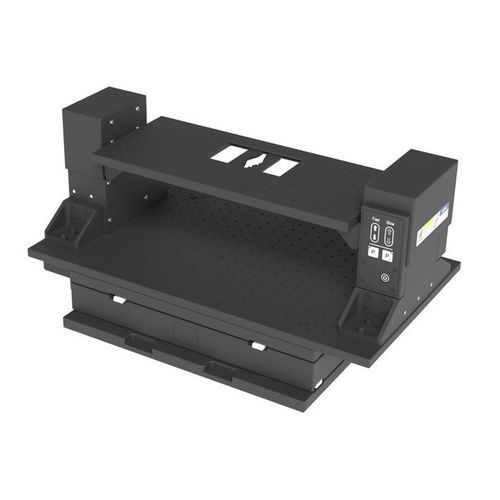

Z-axis positioning stage MALiSelectricmotorizedsingle-axis
Add to favorites
Compare this product
Characteristics
- Orientation
- Z-axis
- Type
- electric, motorized
- Number of axes
- single-axis
- Other characteristics
- high-precision, closed-loop, with position encoder
- Stroke
Max.: 0 mm
(0 in)Min.: 0 mm
(0 in)- Speed
Max.: 0.01 m/s
(0.05 ft/s)Min.: 0.01 m/s
(0.05 ft/s)- Repeatability
Max.: 1 µm
Min.: 0.001 µm
- Load
Max.: 30,000 g
(1,058.22 oz)Min.: 30,000 g
(1,058.22 oz)
Description
Product overview
MALiS is a configurable, high-precision Z-positioning system designed for coarse adjustment with micron-range repositioning and parallelism. The system delivers synchronous Z-axis motion, integrated optical measurement and fast travel for load-bearing laboratory and industrial applications. MALiS can be combined with XY stages, grid plates or customer-specific components to fit application workflows.
Applications
Configuration and options
Controlled axes
Specifications
Features
Additional information
Product data sheets are available in German and English.
Technical specifications
MALiS is a configurable, high-precision Z-positioning system designed for coarse adjustment with micron-range repositioning and parallelism. The system delivers synchronous Z-axis motion, integrated optical measurement and fast travel for load-bearing laboratory and industrial applications. MALiS can be combined with XY stages, grid plates or customer-specific components to fit application workflows.
Applications
- Life science and microscopy
- 3D printing and additive manufacturing
- Materials testing and metrology
- Photonics and optics integration
- Research & development and prototyping
Configuration and options
- Integrable with a range of XY positioning systems
- Grid plates: grid top, grid top with sample handling
- Custom tops and customer-specific components
- Spacers and single-axis modules as accessories
Controlled axes
- Synchronous Z-axes for matched motion
- Configurable interfaces: XY systems, grid plates, customized modules
Specifications
- Resolution: 0.05 µm
- Repeatability: < 1 µm
- Maximum travel speed: 14 mm/s
- Load capacity: 30 kg
Features
- Prepared for mounting on optical breadboards and custom platforms
- Integrated optical measuring system for closed-loop control
- Memory function with configurable presets for single-button positioning
- Control via joystick or control panel
Additional information
Product data sheets are available in German and English.
Technical specifications
- Resolution: 0.05 µm
- Repeatability: < 1 µm
- Travel speed (max): 14 mm/s
- Load capacity: 30 kg
- Controlled axes: synchronous Z-axes
- Configurable with XY positioning systems, grid plates, customized components
- Integrated optical measuring system
- Memory function with configurable presets
- Control options: joystick or control panel
