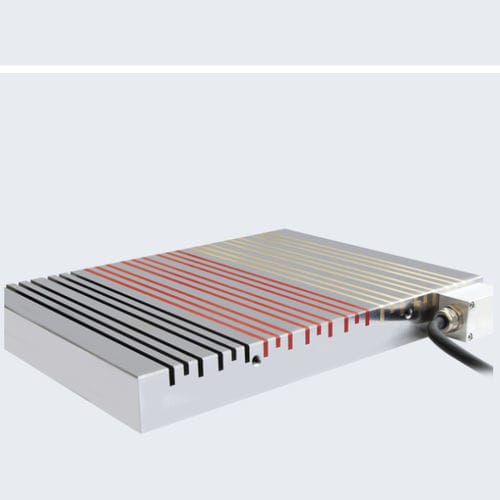

Electro-permanent magnetic chuck GrindTec

circularrectangularfor grinding

The GrindTec line is the alternative to the traditional electromagnetic grinding table: stable over time, it does not overheat and its surface can be machined multiple times. 4 different polar geometries and machine thickness starting from 2 mm, available in various sizes and rectangular and circular shapes. GrindTec is the solution specifically designed for pieces with a thickness of 5 mm and is available in various sizes. It is suitable for all types of machines. • Maximum level of safety • Energy saving • No overheating • No deformation MONO-BLOCK STRUCTURE All GrindTec grinding series permanent-electro magnetic chucks have a mono-block frame of reduced thickness in order to lighten the load on the machine to improve performance and reduce wear. The total rigidity of the system and absence of deformations over time are the main characteristics associated with magnetic configurations with different pole pitches to be chosen depending on the type of machine. During the entire machining phase the electrical power supply is cut without any electrical current circulating inside. UNIFORM WORKHOLDING A series of through holes placed in relation to the centre distance of the slots on the machine bed allows for easy installation. Multiple modules can be placed side by side to form magnetic banked panels of various sizes.
