Orbital welding head D-Head series

GTAWwater-cooledautomatic

Overview

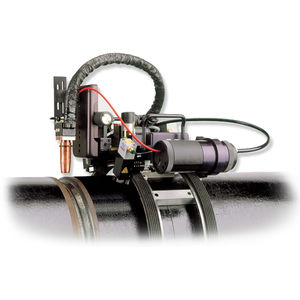

The Magnatech D-Head 420 welding head is engineered for multi-pass orbital GTAW pipe-to-pipe and pipe-to-fitting welds. It reproduces skilled manual welding motions and flexibility while improving repeatability and reducing rework. Its compact envelope supports applications with radial and axial clearance constraints; many applications require a minimum clearance of 2" / 51 mm. Positioning on the pipe is achieved via interchangeable guide rings (24 standard sizes) and insert kits to cover 0.84 – 14" / 21.34 – 355.60 mm OD.

Key product data

• Range: 0.84 - 14" / 21.34 - 355.60 mm OD
• Primary function: multi-pass orbital GTAW, pipe-to-pipe and pipe-to-fitting
• Materials: carbon-based and exotic alloys
• Power supply compatibility: Pipemaster 515 and Pipemaster 516

Main features

• Torch oscillation (weaving): Independently programmable width, speed and endpoint dwell; electronic cross-seam steering via pendant; pulsed current automatically synchronized with oscillation for controlled bead profile.
• Filler wire spool: Accepts standard 1 kg / 2 lb spools or 0.5 kg / 1 lb low-profile spools to reduce radial footprint in tight clearances.
• Head‑mounted wire feeder: Compact feeder on the head supports multiple wire diameters for process flexibility.
• Welding head mounting and rotation: Hinged heavy‑duty metal guide rings lock the head to the pipe; rugged sprocket drive provides steady rotation for consistent weld travel.
• Use on preheated pipes: Heat‑tolerant components and water‑cooled housing suit high‑temperature applications and alloys requiring preheat.
• Arc gap control (AGC): Real‑time control of electrode‑to‑work distance to maintain consistent arc conditions and weld quality.
• 3‑axis adjustable filler wire nozzle: Multi‑axis adjustments enable precise wire entry into the weld pool.

Included with each D-Head 420

• Complete wire size kit (0.020" / 0.5 mm to 0.045" / 1.2 mm)
• Durable wire conduits
• Standard spool kit (2 lb / 1 kg)
• Low-profile spool kit (1 lb / 0.5 kg)
• All required accessories to operate the head
• Tool kit for mechanical adjustment
• Miscellaneous screw package
• Rugged heavy‑duty storage case

Required accessories — Guide rings (summary)

• 103854-1750 — Guide ring, chain/link kit, 1.75" tube / 44.45 mm
• 103854-1900 — Guide ring, chain/link kit, 1.9" pipe / 48.26 mm
• 103854-2000 — Guide ring, chain/link kit, 2.00" tube / 50.80 mm
• 103854-2125 — Guide ring, chain/link kit, 2.125" tube / 53.975 mm
• 103854-2250 — Guide ring, chain/link kit, 2.250" tube / 57.15 mm
• 103854-2375 — Guide ring, chain/link kit, 2.375" pipe / 60.33 mm
• 103854-2500 — Guide ring, chain/link kit, 2.500" tube / 63.50 mm
• 103854-2875 — Guide ring, chain/link kit, 2.875" pipe / 73.025 mm
• 103854-3000 — Guide ring, chain/link kit, 3.000" tube / 76.20 mm
• 103854-3250 — Guide ring, chain/link kit, 3.250" tube / 82.55 mm
• 103854-3500 — Guide ring, chain/link kit, 3.500" pipe / 88.90 mm
• 103854-4000 — Guide ring, chain/link kit, 4.000" tube / 101.60 mm
• 103854-4500 — Guide ring, chain/link kit, 4.500" pipe / 114.30 mm
• 103854-5000 — Guide ring, chain/link kit, 5.000" tube / 127.00 mm
• 103854-5563 — Guide ring, chain/link kit, 5.563" pipe / 141.30 mm
• 103854-6000 — Guide ring, chain/link kit, 6.000" tube / 152.40 mm
• 103854-6625 — Guide ring, chain/link kit, 6.625" pipe / 168.275 mm
• 103853-7250 — Guide ring, chain/link kit, 7.250" tube / 184.15 mm
• 103853-7750 — Guide ring, chain/link kit, 7.750" tube / 196.85 mm
• 103853-8000 — Guide ring, chain/link kit, 8.000" tube / 203.20 mm
• 103853-8625 — Guide ring, chain/link kit, 8.625" pipe / 219.075 mm
• 103853-10750 — Guide ring, chain/link kit, 10.750" pipe / 273.05 mm
• 103853-12750 — Guide ring, chain/link kit, 12.750" pipe / 323.85 mm
• 103853-14000 — Guide ring, chain/link kit, 14.000" pipe / 355.60 mm

Notes
Guide rings are composed of two hinged segments that close around the pipe and latch together. Insert kits allow use on smaller diameters than the ring nominal size. For pipe/tube OD below 1.75" / 44.45 mm, radial clearance requirements increase as diameter decreases.

Technical specifications

• Pipe (tube) size range: 0.84 – 14" / 21.34 – 355.60 mm OD
• Cable length: 25' / 7.6 m standard
• Filler wire module — Wire sizes: 0.020", 0.030", 0.035", 0.040", 0.045" (0.5, 0.8, 0.9, 1.0, 1.2 mm)
• Filler wire module — Max. speed: 2540 mm/min (100 IPM)
• Spool sizes: 2 lbs / 1 kg standard; 1 lb / 0.5 kg low profile
• Oscillation module — Max. stroke amplitude: 0.625" / 16 mm
• Oscillation module — Max. oscillation speed: 1520 mm/min (60 IPM)
• Oscillation dwell: 0 – 1 second
• Oscillation cross seam adjustment: 0.5" / 12.7 mm
• Arc gap control (AGC) stroke: 0.5" / 12.7 mm; additional mechanical adjustment allows welding thicker walls up to 1.0" / 25.4 mm
• Torch propulsion module — Max. rotation speed: 25.4 cm/min (10 IPM)
• Water‑cooled torch: 200 A continuous capability
• Torch lead/lag adjustment: ±15° (manual)
• Torch tilt adjustment: ±10° (manual)
• Weight: 8 lbs / 3.6 kg (excluding torch cable)
• Axial clearance: torch centerline to rear extremity: 8.51" / 216.2 mm
• Radial clearance: torch centerline to front extremity: 0.41" / 10.4 mm
• Typical clearance requirement: 2.5" / 63.5 mm with standard spool (radial clearance increases for OD < 1.75" / 44.45 mm)
