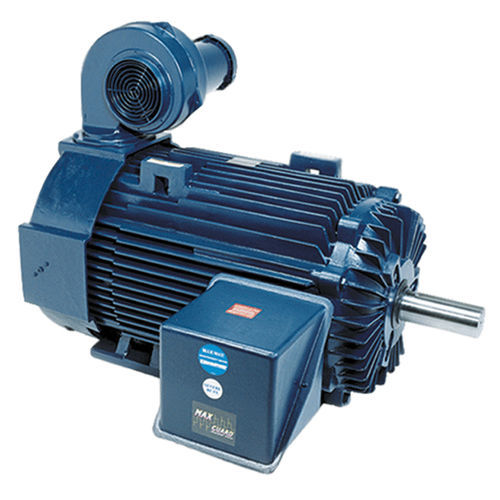

Asynchronous motor Blue Max®

three-phase100 V380 V

Blue Max Motors offer the most complete line of inverter duty motors in the industry. This motor series was designed to Magnetek's specifications, and is ideal for use in any application where precise motion control is needed. Tests have shown that these motors are capable of a 1500:1 speed range when used with our IMPULSE®• VG+ Series 4 flux vector motor control. Features 1 to 400 HP Suitable for CMAA Class A through F 1.0 Service Factor on PWM drives Available Totally Enclosed Non-Ventilated (TENV) 60 Min. duty Totally Enclosed Blower Cooled (TEBC) continuous duty Totally Enclosed Non-Ventilated (TENV) continuous duty NEMA design A, optimized for operation with IGBT inverters Class F insulation (449T Frame Class H) with patented Max Guard® winding system for use with IGBT variable frequency drives Class F thermostats (Klixons) in all three phases Cast Iron frame and brackets for strength and corrosion resistance Voltage 230/460, 3 phase, 60 Hz (143T to 286T frame) Voltage 460, 3 phase, 60 Hz (324T to 449T frame) Available options include encoders, NEMA C Face mounting, Class H insulation, space heaters, explosion proof, severe duty treatment, doubleshaft/tapershaft, brakes, and inpro seals Two-year warranty High Horsepower Motors For applications requiring a higher horsepower motor, Magnetek offers Blue Max motors in a 5000 series frame, capable of up to 1000 HP. This motor is suitable for CMAA Class A through F applications and has a service factor of 1.0 on PWM drives. Like our lower HP version, the Blue Max High Horsepower Motor is capable of a 1500:1 speed range, when used with our IMPULSE®•VG+ Series 4 Flux Vector motor control.
