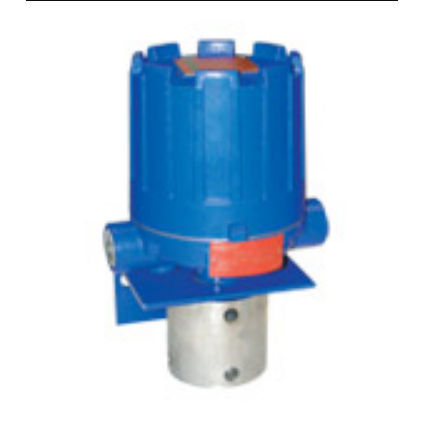

Float level switch FLS
displacerfor liquidsstainless steel

float level switch
float level switch
float level switch
float level switch
Add to favorites
Compare this product


float, displacer
for liquids
stainless steel


The Model FLS Flood Level Switch is a float operated, liquid level control designed for bracket mounting at floor level sumps or troughs. The proven Magnetrol magnetic coupling is employed to convert float movement to actuate a single snap-action dry contact switch mechanism. The switch is factory set for ¾" level differential for off-on control, alarm or safety shutdown service. All float operated liquid level controls operate on the basic buoyancy principle which states "the buoyancy force action on an object is equal to the mass of liquid displaced by the object." As a result, floats ride on the liquid surface partially submerged and move the same distance the liquid level moves. Because of this, they are normally used for narrow level differential applications such as high level alarm or low level alarm. Submersible switch housing All stainless steel float, bracket and trim points Perforated tube protects float OPTIONS Consult factory for IEEE 323-1974, IEEE 344-1975 availability The buoyancy force of a process liquid on the float causes the float to move with the liquid surface. The movement of the float moves an attraction sleeve into the field of the switch magnet, pulling the magnet toward the sleeve and actuating the switch.
