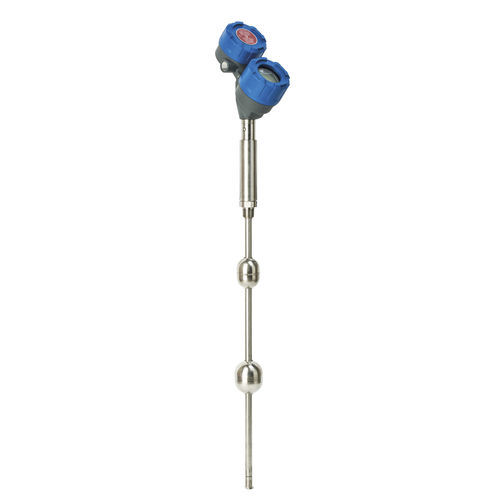

Magnetic float level transmitter JUPITER® JM4
for liquids4-20 mAwith digital display

magnetic float level transmitter
magnetic float level transmitter
magnetic float level transmitter
magnetic float level transmitter
Add to favorites
Compare this product


Characteristics

Technology
magnetic float
Medium
for liquids
Interface
4-20 mA
Other characteristics
with digital display, loop-powered, smart
Level range

Max.: 999 cm
(393.31 in)

Min.: 15 cm
(5.91 in)

Process pressure

207 bar
(3,002.28 psi)

Process temperature

Max.: 85 °C
(185 °F)

Min.: -45 °C
(-49 °F)

Description

The Jupiter® JM4 liquid level transmitter is a loop-powered 24 VDC liquid-level transmitter and is available as a direct insertion transmitter or as an external mounted transmitter onto a Magnetic Level Indicator. It relies on the position of a magnetic float which is designed precisely for the liquid to be measured. This high-accuracy device can be designed for liquid level and/or liquid-liquid interface measurement. The high safety level of JUPITER is demonstrated by a Safe Failure Fraction > 90 % Magnetostrictive A low-energy pulse, generated by the JUPITER electronics, travels the length of the magnetostrictive wire. A return signal is generated from the precise location where the magnetic field of a float intersects the wire. A timer precisely measures the elapsed time between the generation of the pulse and the return of the acoustic signal. Each cycle occurs ten times per second, providing real-time and highly accurate level data. 4-button user interface and graphical LCD display provide enhanced depth of data, indicating on-screen waveforms and troubleshooting tips. 4-20 mA output Rotatable housing can be dismantled without depressurising the vessel via “Quick connect/disconnect” probe coupling. Ergonomic dual compartment enclosure Simple set-up and configuration Smart Probe Technology Easy attachment to an MLI Direct insertion for a wide variety of vessels and applications OPTIONS HART® digital communications Hastelloy® or Monel® materials of construction Threaded or flanged process connections External Jupiter models can be top or bottom mounted to an MLI
