Liquids dispensing system

for robotic applicationsfor industrial applicationsconfigurable

Overview

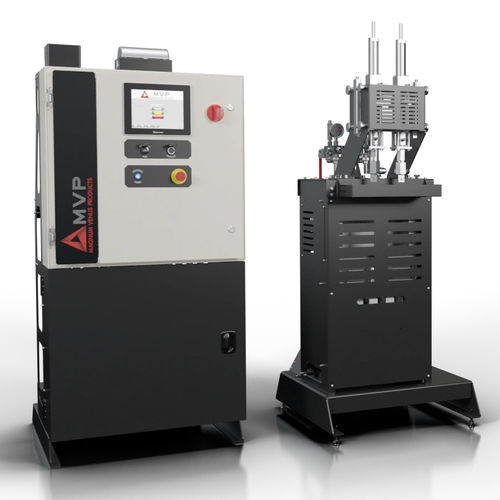

The Independent Pump Drive (IPD) System by MVP comprises a PLC controller, a primary hydraulic unit and precision, independently driven fluid sections. The system meters and mixes up to six components over a wide flow range for consistent multi-component dispensing in automated manufacturing environments.

Key capabilities

• Precise multi-component dispensing with programmable shot sizes
• Seamless integration with automation and robotic systems (external recipe or robot control)
• Independent fluid sections enable custom ratios, on-the-fly adjustments and recipe-based operation
• Operator-friendly: enter ratios and set a rate for automated start and metering of each component
• High metering precision: maintains multiple ratios within ±1%

Key Features

• Configurable up to 6 fluid sections per unit
• Output per section: 50 - 22,500 cc (0.015 - 6.0 gpm)
• Operating fluid pressures from 100 - 2,700 psi
• Ratio range: 10:1 to 100:1
• 1% accuracy and ±5 cc/min delivery accuracy
• Guided, direct-driven fluid sections for low maintenance and high reliability
• High-accuracy encoders for precise control of ratios and outputs

Notes
All performance parameters depend on material properties and chosen fluid section configuration.
